PE7314-50

Overview

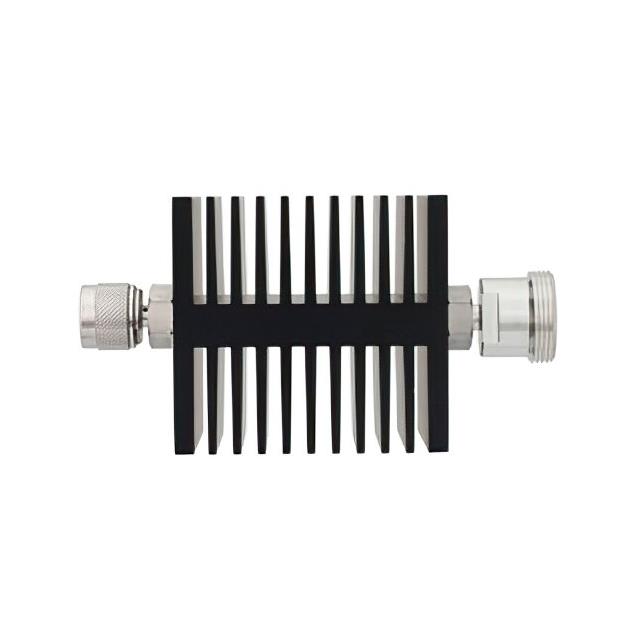

The Pasternack PE7314-50 is a fixed RF attenuator module designed for high-power applications. It provides a nominal attenuation of 50 dB with a frequency range extending from 0 Hz to 6 GHz. The device features an N male connector on one side and a 7/16 DIN female connector on the other, ensuring compatibility with standard industrial RF interfaces. Rated for 50 watts of power dissipation, this directional component maintains impedance matching at 50 Ohms throughout its operational bandwidth.

Feature Summary

• Directional signal attenuation capability
• High power handling rated at 50 watts
• Broadband operation up to 6 GHz

Applications

• Preventing signal overload in amplifiers
• Signal level control in receivers
• Protection of detector circuits

Procurement Notes

Verify the specific connector configuration matches your system requirements, as this model combines N male and 7/16 DIN female interfaces. Confirm that the 50-watt power rating aligns with your peak input levels. Ensure the 6 GHz frequency limit covers your entire operational spectrum. Check datasheet specifications for VSWR and return loss values critical for precision measurement setups.

Selection Notes

Select this unit when high power dissipation is required alongside significant attenuation. The mixed connector interface necessitates checking adapter availability if uniform connectors are preferred. Consider the directional nature of the component for proper orientation in the signal chain. Evaluate thermal management needs given the 50-watt rating in enclosed environments.

Part Context

This component belongs to Pasternack's line of fixed RF attenuators, which offer various attenuation levels and frequency ranges. The PE7314 series specifically targets high-power scenarios, distinguishing itself from lower-wattage general-purpose models. These modules are engineered for stability and reliability in demanding RF environments.

Replacement Considerations

Direct substitutes must match the 50 dB attenuation, 50W power rating, and 0-6 GHz frequency range. Connector combinations (N Male to 7/16 DIN Female) must be identical or addressed via verified adapters. Verify that any alternative part maintains comparable VSWR and directivity specifications.
