PE7315-10

Overview

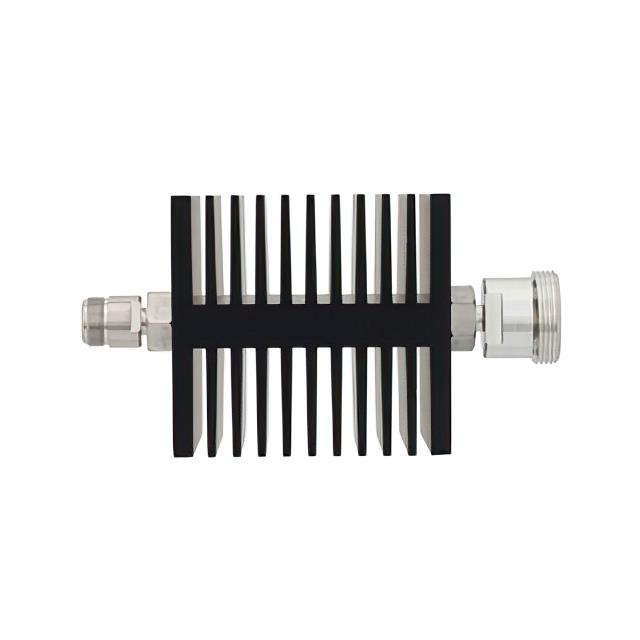

The Pasternack PE7315-10 is a fixed microwave attenuator designed for high-frequency applications up to 7.5 GHz. It provides a precise attenuation value of 10 dB with a nominal impedance of 50 Ohms. The device supports a power rating of 50 Watts at the stated attenuation level. It features an N Female input connector and a 7/16 DIN Female output connector, facilitating integration into RF systems requiring directional signal reduction.

Feature Summary

• Provides fixed 10 dB attenuation for signal control
• Operates effectively across frequencies up to 7.5 GHz
• Supports 50 Watt power handling capacity
• Features N Female to 7/16 DIN Female interface configuration

Applications

• RF signal level adjustment in microwave circuits
• Test and measurement equipment calibration
• Communication system signal attenuation

Procurement Notes

Verify the specific connector gender and type compatibility with your existing RF infrastructure before procurement. Confirm that the 50 Watt power rating aligns with your system's operational requirements. Ensure the frequency range up to 7.5 GHz meets your application needs. Check for RoHS compliance status if required by your regulatory standards. Validate the datasheet specifications against your technical design parameters.

Selection Notes

Select this component when a fixed 10 dB reduction is required in the 0 Hz to 7.5 GHz range. Consider the N Female to 7/16 DIN Female interface for system integration. Evaluate the 50 Watt power handling capability against peak signal levels. Compare performance metrics with other fixed attenuators if variable attenuation is not needed. Ensure impedance matching at 50 Ohms for optimal signal integrity.

Part Context

This part belongs to Pasternack's line of fixed microwave attenuators. These components are engineered for stable performance in RF environments. The series offers various attenuation values and connector combinations. They are commonly used in telecommunications and testing setups. The PE7315-10 specifically addresses needs for moderate signal reduction at higher frequencies.

Replacement Considerations

Direct substitutes may include other 10 dB fixed attenuators from Pasternack with compatible connectors. Verify interface compatibility between N Female and 7/16 DIN Female ports. Ensure replacement parts meet the same 7.5 GHz frequency and 50 Watt power specifications. Cross-reference datasheets for insertion loss and VSWR tolerances.
