PE7315-20

Overview

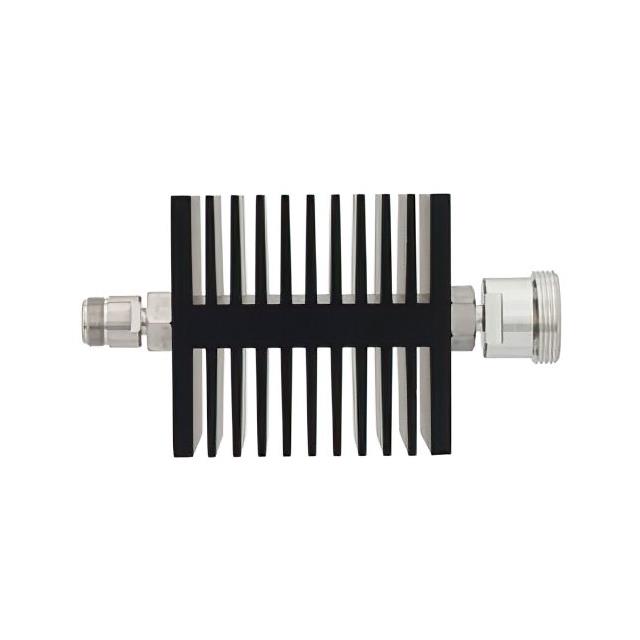

The Pasternack PE7315-20 is a fixed microwave attenuator designed for high-frequency signal management. It provides a precise attenuation value of 20 dB within its operational range. The device supports a maximum power rating of 50 Watts at the stated attenuation level, ensuring robust performance in demanding RF environments. It operates effectively up to a frequency of 7.5 GHz, making it suitable for various broadband applications. The unit features a 7/16 DIN female connector on one side and an N female connector on the other, facilitating versatile integration into existing coaxial systems.

Feature Summary

• Provides a fixed 20 dB attenuation value for consistent signal reduction
• Supports a high power handling capacity of 50 Watts
• Operates with a frequency range extending up to 7.5 GHz
• Features directional design for controlled signal flow

Applications

• RF test and measurement instrumentation
• Microwave communication systems
• Signal conditioning in broadcast equipment
• Laboratory research and development setups

Procurement Notes

Verify that the specific part number PE7315-20 matches the required 20 dB attenuation and 50 Watt power rating. Confirm the connector configuration includes a 7/16 DIN female interface and an N female interface. Ensure the frequency specification meets the application requirement of up to 7.5 GHz. Check for RoHS compliance status if environmental regulations apply. Validate the directional nature of the component against system design needs.

Selection Notes

Select this model when a fixed 20 dB reduction is necessary for signals up to 7.5 GHz. Consider the 50 Watt power rating for high-power applications requiring stable attenuation. Choose between 7/16 DIN and N connectors based on the existing system interface requirements. Evaluate the directional characteristic if signal isolation or specific flow direction is critical for the setup.

Part Context

This component belongs to the Pasternack PE7315 series of fixed attenuators. The series offers various attenuation values, including 10 dB and 20 dB options. These devices are engineered for reliable performance in microwave frequencies. The PE7315-20 specifically addresses scenarios requiring significant signal reduction while maintaining impedance integrity across the specified bandwidth.

Replacement Considerations

Direct substitutes may include other Pasternack models within the PE7315 series offering similar attenuation and power ratings. Verify compatibility of 7/16 DIN and N female interfaces before swapping. Cross-reference frequency limits and power handling capabilities to ensure equivalent performance in the target application.
