PE7315-30

Overview

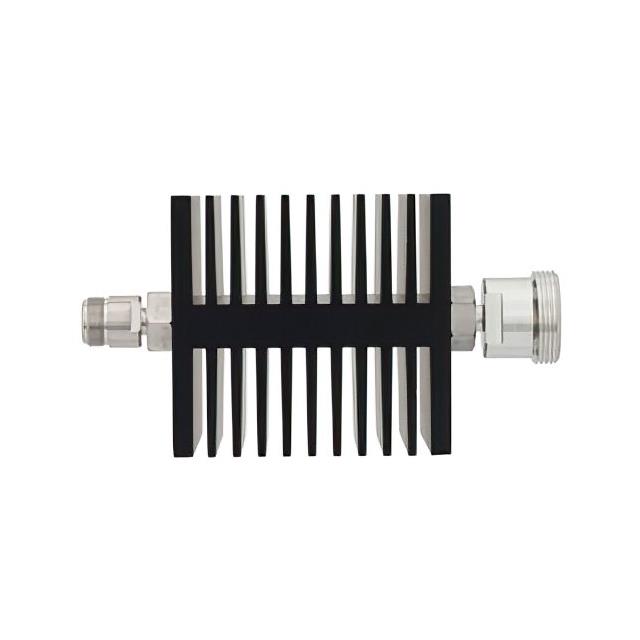

The Pasternack PE7315-30 is a fixed attenuator designed for RF applications, offering a nominal attenuation of 30 dB. It features an N female to 7/16 DIN female connector configuration, facilitating connections between different interface standards. The device is rated for up to 50 watts of power handling and operates effectively within a frequency range extending up to 7.5 GHz. Constructed with durable materials, it ensures reliable signal reduction in high-frequency environments.

Feature Summary

• Provides precise 30 dB signal attenuation for RF circuit management
• Features N female to 7/16 DIN female interface conversion
• Rated for 50 watts power handling capacity
• Operates reliably up to 7.5 GHz frequency range

Applications

• RF signal level adjustment in test and measurement setups
• Interfacing N-type equipment with 7/16 DIN systems
• Power reduction in high-frequency transmission lines
• Calibration reference in microwave testing environments

Procurement Notes

Verify the specific datasheet version for the PE7315-30 to confirm exact VSWR and return loss specifications, as these can vary by manufacturing batch. Ensure compatibility with your system's impedance requirements, typically 50 ohms. Check for any RoHS compliance documentation if required for your project regulations. Confirm physical dimensions against your enclosure constraints before finalizing procurement.

Selection Notes

Select the PE7315-30 when a fixed 30 dB attenuation is required between N-type and 7/16 DIN connectors. It is suitable for applications needing 50-watt power handling up to 7.5 GHz. Consider this component if you need to match impedance levels or reduce signal strength in microwave circuits without active components. Ensure the connector gender and type align with your existing infrastructure.

Part Context

This component belongs to Pasternack's line of fixed attenuators, which are passive devices used to reduce signal amplitude. The PE7315-30 specifically addresses the need for attenuation in mixed-connector environments, bridging N-type and 7/16 DIN interfaces. These attenuators are essential for protecting sensitive equipment from high-power signals and ensuring accurate measurements in RF systems.

Replacement Considerations

Direct substitutes may include other 30 dB fixed attenuators with N female to 7/16 DIN female configurations from Pasternack or compatible manufacturers. Verify that replacement parts meet the same 50-watt power rating and 7.5 GHz frequency limit. Ensure mechanical compatibility and electrical performance metrics such as VSWR are equivalent to maintain system integrity.
