PE7315-40

Overview

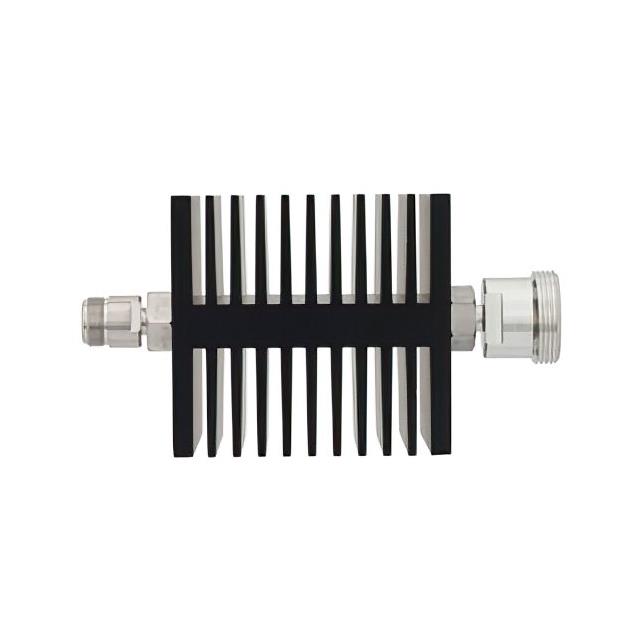

The Pasternack PE7315-40 is a fixed 40 dB RF attenuator designed for high-frequency applications. It operates within a frequency range of 0 Hz to 7.5 GHz and maintains a nominal impedance of 50 Ohms. The device features N Female to 7/16 DIN Female connectors, providing versatile interface options for coaxial systems. Rated for 50 Watts of power handling, this inline resistive PI attenuator pad ensures stable signal attenuation across its specified bandwidth.

Feature Summary

• Fixed 40 dB attenuation value for precise signal reduction
• Wideband operation from DC to 7.5 GHz
• Robust 50 Watt power handling capability
• Inline resistive PI attenuator pad design

Applications

• RF test and measurement setups requiring signal level adjustment
• Wireless communication system component integration
• Microwave circuit protection and signal conditioning

Procurement Notes

Verify connector gender and interface compatibility with existing N Female and 7/16 DIN ports. Confirm that the 50 Ohm impedance matches your system requirements. Ensure the operating frequency does not exceed 7.5 GHz and that power levels remain within the 50 Watt limit. Check datasheet specifications for VSWR and insertion loss tolerances before finalizing procurement decisions.

Selection Notes

Select this model when a fixed 40 dB reduction is required in the 7.5 GHz range. Consider the N Female to 7/16 DIN interface combination for specific cabling needs. Evaluate the 50 Watt power rating against peak signal levels. Compare with other Pasternack attenuators if variable attenuation or different connector types are necessary for the application.

Part Context

This component belongs to Pasternack's line of passive RF microwave parts. It serves as a standard fixed attenuator module within their broader portfolio of coaxial connectors, cables, and adapters. The product supports general RF infrastructure by providing reliable signal attenuation without active components.

Replacement Considerations

Pasternack PE7315-30 offers 30 dB attenuation with identical interfaces and specifications. Verify if the lower attenuation value meets system requirements. No other direct substitutes are documented in public sources.
