PE7316-3

Overview

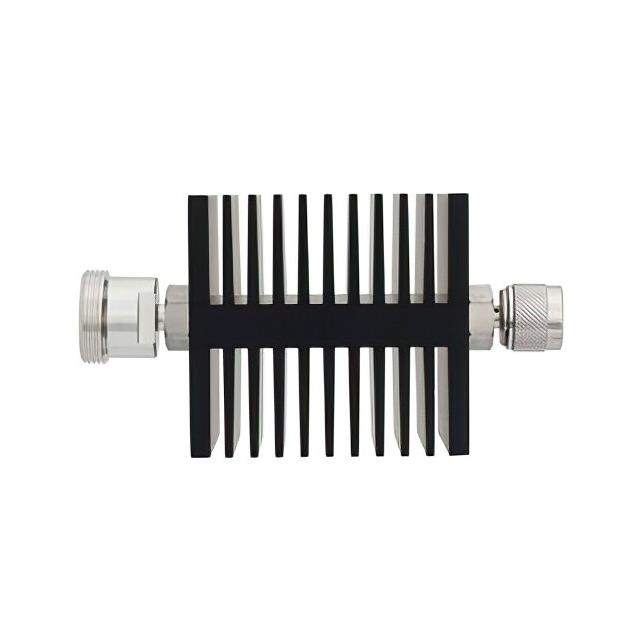

The Pasternack PE7316-3 is a fixed RF attenuator module designed for high-power applications. It provides a precise attenuation value of 3 dB across a frequency range of 0 Hz to 7.5 GHz. The component operates with a characteristic impedance of 50 Ohms and supports a maximum power handling capacity of 50 Watts at the stated attenuation level. It features 7/16 DIN Female connectors on one side and N Female connectors on the other, facilitating interconnection between different connector series. The unit is constructed as a robust module suitable for demanding microwave environments.

Feature Summary

• Provides fixed 3 dB attenuation for signal level control
• Supports high power handling up to 50 Watts
• Operates over a wide frequency range from DC to 7.5 GHz
• Features mixed connector interfaces: 7/16 DIN Female and N Female

Applications

• Microwave test and measurement setups
• RF signal distribution systems requiring power reduction
• Communication equipment testing and calibration
• Aerospace and defense radar systems

Procurement Notes

Verify the specific connector configuration and power rating against your system requirements before procurement. Confirm that the 7/16 DIN Female to N Female interface matches your existing infrastructure. Ensure the 50 Watt power handling capability exceeds your operational peak power levels to prevent damage. Check for any specific environmental ratings or mounting requirements detailed in the official datasheet.

Selection Notes

Select this model when a fixed 3 dB attenuation is required within a 50 Ohm system operating up to 7.5 GHz. Consider the 50 Watt power rating for high-power applications. The mixed connector type (7/16 DIN to N) is ideal for bridging different connector standards without additional adapters. Evaluate space constraints as it is a module form factor.

Part Context

The PE7316-3 belongs to Pasternack's line of fixed RF attenuators. These components are engineered to provide stable attenuation values across specified frequency bands. The product line typically includes various attenuation values and power ratings to suit diverse RF design needs. This specific model addresses the need for high-power attenuation with mixed connector compatibility.

FAQ

What is the maximum power handling capacity of the PE7316-3?

The PE7316-3 is rated to handle up to 50 Watts at the stated attenuation value.

Does the PE7316-3 support frequencies above 7.5 GHz?

No, the specified frequency range for the PE7316-3 is 0 Hz to 7.5 GHz.
