PE7316-40

Overview

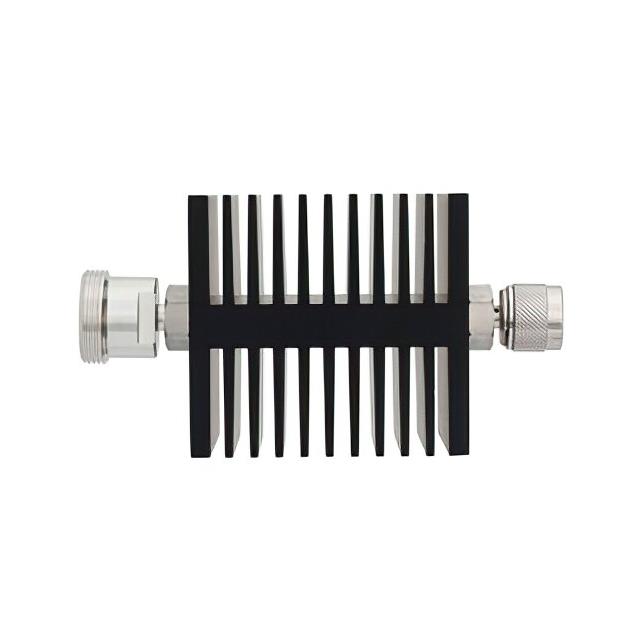

The PE7316-40 is a fixed RF attenuator module manufactured by Pasternack. It provides a nominal attenuation of 40 dB across a frequency range of 0 Hz to 7.5 GHz. The component operates with a 50 Ohm impedance and supports a maximum power handling capacity of 50 Watts. The device features a 7/16 DIN female input connector and an N female output connector, designed for reliable signal reduction in microwave applications.

Feature Summary

• Provides precise 40 dB signal attenuation
• Operates up to 7.5 GHz frequency
• Supports 50W power handling
• Features 7/16 DIN female to N female interface

Applications

• RF test and measurement equipment
• Microwave communication systems
• Signal level adjustment in antenna feeds

Procurement Notes

Verify the specific connector gender and interface standards against system requirements before purchase. Confirm that the 50W power rating aligns with peak operational loads. Ensure the 7/16 DIN to N female configuration matches existing cabling infrastructure. Check for any environmental specifications if used in harsh conditions.

Selection Notes

Select this model when a fixed 40 dB loss is required within the 7.5 GHz bandwidth. Consider the 50W power capability for high-power transmission lines. The mixed connector interface (7/16 DIN to N) requires appropriate adapters or cable assemblies. Verify impedance matching to 50 Ohms for minimal reflection.

Part Context

This component belongs to Pasternack's line of passive RF attenuators. It serves as a fixed-loss element for controlling signal amplitude. The product is part of a broader catalog of microwave components including amplifiers and cables. It is designed for integration into modular RF systems requiring stable attenuation characteristics.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. When sourcing alternatives, ensure the replacement matches the 40 dB attenuation value, 7.5 GHz frequency limit, and 50W power rating. Connector compatibility between 7/16 DIN and N-type interfaces must be maintained.
