PE7316-50

Overview

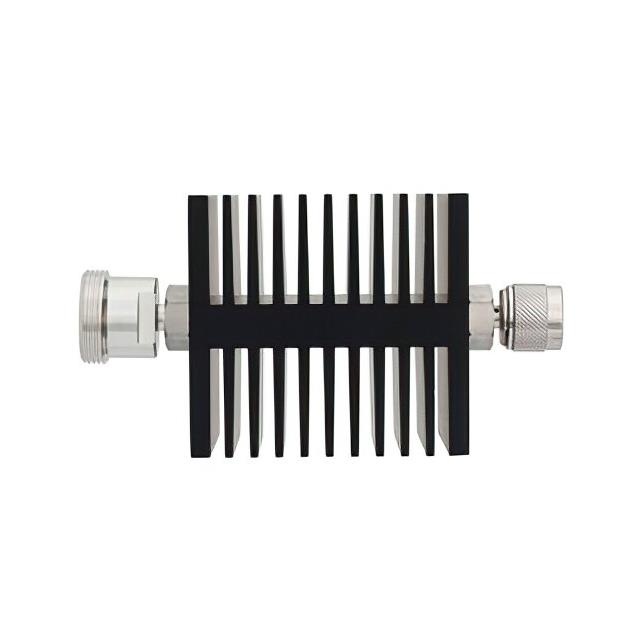

The Pasternack PE7316-50 is a fixed coaxial RF attenuator designed for high-power applications. It provides a nominal attenuation of 50 dB with a power handling capacity of 50 Watts. The device operates within a frequency range of 0 Hz to 6 GHz and maintains a characteristic impedance of 50 Ohms. Constructed from black anodized aluminum, it features a 7/16 DIN female connector on one side and an N-type female connector on the other. This directional configuration ensures reliable signal reduction in microwave systems while maintaining structural integrity under thermal stress.

Feature Summary

• High power handling capability rated at 50 Watts for robust operation
• Wideband frequency performance extending from DC to 6 GHz
• Durable black anodized aluminum housing for thermal management
• Directional design utilizing mixed connector interfaces for system integration

Applications

• RF signal level reduction in microwave test and measurement setups
• Attenuation stages in high-power communication transmitters
• Signal conditioning in radar system testing environments
• Protection of sensitive receiver inputs from high-power sources

Procurement Notes

Verify that the specific order matches the exact part number PE7316-50 to ensure correct connector gender and interface types. Confirm that the application environment remains within the specified 50 Watt power limit and 6 GHz frequency range. Check for physical compatibility between the 7/16 DIN and N-type connectors against existing system hardware before finalizing procurement decisions.

Selection Notes

Select this component when a fixed 50 dB attenuation value is required for high-power scenarios up to 50 Watts. Choose this model if the system necessitates a transition between 7/16 DIN and N-type female connectors. Ensure the operating frequency does not exceed 6 GHz. Consider the directional nature of the attenuator for proper signal flow directionality in the circuit design.

Part Context

This attenuator belongs to Pasternack's line of passive RF components, specifically designed for coaxial signal processing. It complements their broader portfolio of microwave parts and cable assemblies. The product serves as a critical passive element for managing signal strength in complex RF architectures requiring precise attenuation without active power sources.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify connector compatibility and power ratings when evaluating alternative models from other manufacturers.
