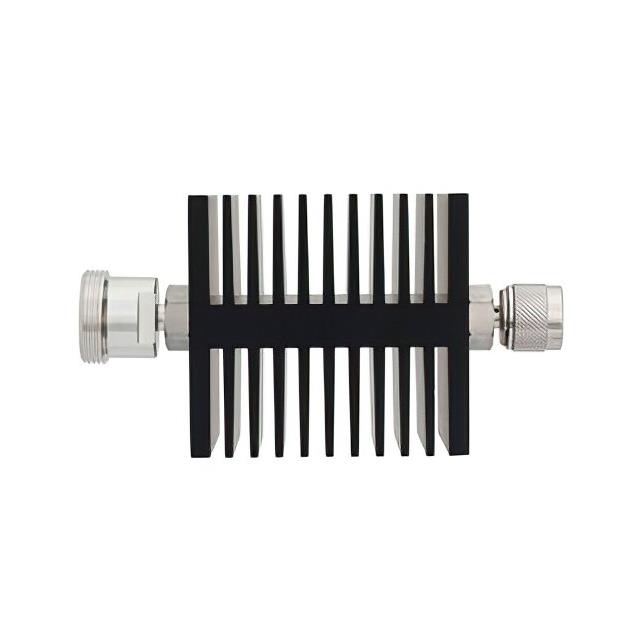

PE7316-6

$507.42

Description：6 dB Fixed Attenuator, 7/16 DIN
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:7750726b9b57 Category: Attenuators Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：6 dB Fixed Attenuator, 7/16 DIN
Series：-
Mfr：Pasternack
Package：Retail Package
Attenuation Value：6dB
Frequency Range：0 Hz ~ 7.5 GHz
Power (Watts)：50W
Impedance：50 Ohms
Grade：-
Qualification：-
Package / Case：Module

Download product information

PE7316-6

Overview

The Pasternack PE7316-6 is a fixed RF attenuator module designed for high-frequency applications. It provides a precise attenuation value of 6 dB across a frequency range of 0 Hz to 7.5 GHz. The component operates with a characteristic impedance of 50 Ohms and supports a maximum power handling capacity of 50 Watts. Constructed as a coaxial module, it ensures signal integrity within standard RF test and measurement environments.

Feature Summary

Provides fixed 6 dB attenuation for signal level control
Operates effectively from DC up to 7.5 GHz
Supports 50W power handling in 50 Ohm systems

Applications

RF signal testing and measurement instrumentation
Telecommunications equipment signal conditioning
Laboratory test setups requiring precise attenuation

Procurement Notes

Verify the specific connector interface configuration required for your system integration, as datasheets may list variations. Confirm that the 50W power rating aligns with your operational thermal requirements. Ensure compatibility with 50 Ohm system impedance to prevent signal reflection issues during procurement.

Selection Notes

Select this model when a fixed 6 dB reduction is necessary within the 7.5 GHz bandwidth. Consider the 50W power limit for high-power applications. Compare against variable attenuators if adjustable levels are needed. Verify physical dimensions and mounting requirements for the specific chassis or panel space available.

Part Context

This component belongs to Pasternack's series of fixed RF attenuators. These modules are engineered for passive signal management in microwave and radio frequency circuits. They serve as essential components for protecting sensitive downstream equipment and calibrating signal paths in professional RF infrastructure.

Replacement Considerations

Consult official manufacturer documentation for direct substitute part numbers. Ensure any replacement matches the 6 dB attenuation value, 7.5 GHz frequency limit, and 50 Ohm impedance specifications exactly to maintain system performance.
