PE7317-10

Overview

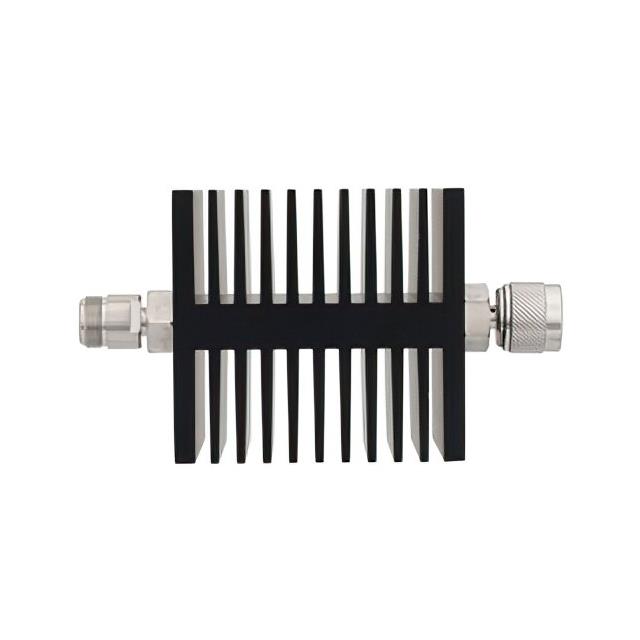

The Pasternack PE7317-10 is a fixed RF attenuator module designed for high-frequency applications. It provides a precise attenuation value of 10 dB across a frequency range extending from 0 Hz to 18 GHz. The device features N-type connectors, specifically an N female input and an N male output, facilitating direct integration into standard coaxial systems. It is rated to handle up to 50 Watts of power at the stated attenuation level. The unit utilizes a directional black housing, indicating its construction as an inline module suitable for demanding microwave environments.

Feature Summary

• Provides stable 10 dB signal reduction across a broad DC to 18 GHz bandwidth
• Engineered with N-type female-to-male interface for seamless system integration
• Capable of dissipating up to 50 Watts of power at the specified attenuation rating

Applications

• Microwave test and measurement setups requiring precise signal level control
• RF circuit design and development for high-frequency validation
• Telecommunications infrastructure testing within the specified frequency range

Procurement Notes

Verify the specific connector gender configuration (N Female to N Male) against your system requirements before procurement. Confirm that the 50 Watt power rating aligns with your operational peak power levels. Ensure the 18 GHz frequency coverage meets your application's upper frequency limits. Check for any specific environmental or mounting constraints associated with the inline module form factor.

Selection Notes

Select this component when a fixed 10 dB attenuation is required in systems operating up to 18 GHz. The N-type interface makes it suitable for general-purpose RF applications where standard connectors are preferred. Consider the 50 Watt power handling capability for moderate to high-power signal paths. This model is appropriate for users needing a reliable, non-adjustable attenuation solution without the complexity of variable attenuators.

Part Context

This part belongs to Pasternack's line of fixed RF attenuators. It serves as a passive component used to reduce signal amplitude without introducing significant distortion. The N-type connector choice indicates compatibility with a wide range of legacy and modern RF equipment. As a fixed attenuator, it offers consistent performance compared to adjustable alternatives, making it ideal for permanent installations or calibrated test fixtures.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
