PE7317-3

Overview

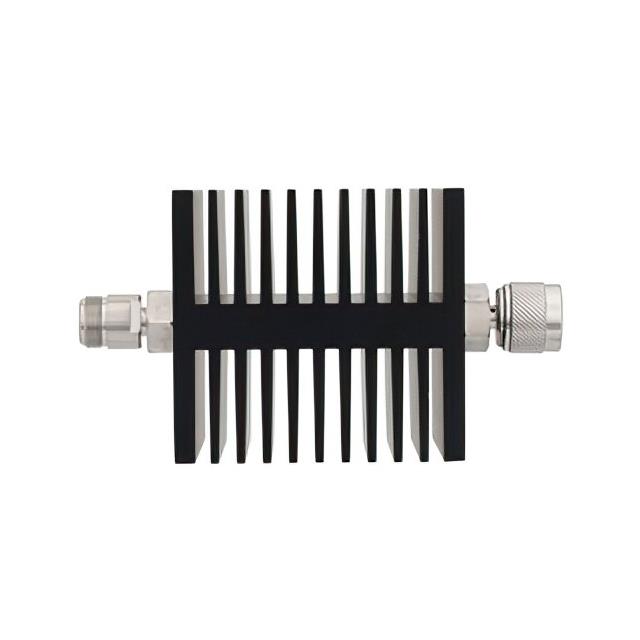

The PE7317-3 is a fixed attenuator module manufactured by Pasternack. It provides an attenuation value of 3 dB with a characteristic impedance of 50 Ohms. The device operates within a frequency range of 0 Hz to 18 GHz and supports a maximum power handling capacity of 50 Watts. The connector interface utilizes N-Type configuration, specifically featuring an N Female input and an N Male output. This inline module is designed for RF signal management applications requiring precise attenuation within the specified high-frequency bandwidth.

Feature Summary

• Provides fixed 3 dB attenuation for signal level control
• Supports operation up to 18 GHz frequency range
• Handles continuous power loads up to 50 Watts
• Features N-Type female to male inline connectivity

Applications

• RF test and measurement equipment signal conditioning
• Wireless communication system power monitoring
• High-frequency circuit board interconnect testing
• Laboratory instrumentation signal attenuation

Procurement Notes

Verify the specific datasheet version for the PE7317-3 to confirm mechanical dimensions and material specifications. Ensure that the required power rating of 50 Watts aligns with the operational environment. Confirm that the N-Type connector gender matches the system interface requirements. Check for any RoHS compliance documentation if environmental regulations apply to the deployment scenario.

Selection Notes

Select this component when a fixed 3 dB reduction in signal amplitude is required within an 18 GHz bandwidth. The 50 Ohm impedance ensures compatibility with standard RF systems. Consider the 50 Watt power rating for high-power applications. The N-Type interface dictates the physical connection method. Evaluate thermal dissipation needs given the power handling capabilities of the module.

Part Context

This part belongs to the Pasternack attenuator product line, which includes various fixed and variable attenuation solutions. The PE series typically denotes specific connector configurations and performance characteristics. As an inline module, it integrates directly into coaxial transmission lines. The manufacturer specializes in RF components for demanding electronic applications.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data. Verify compatibility with existing N-Type connectors before substitution. Ensure replacement parts meet the same 50 Ohm impedance and 18 GHz frequency specifications.
