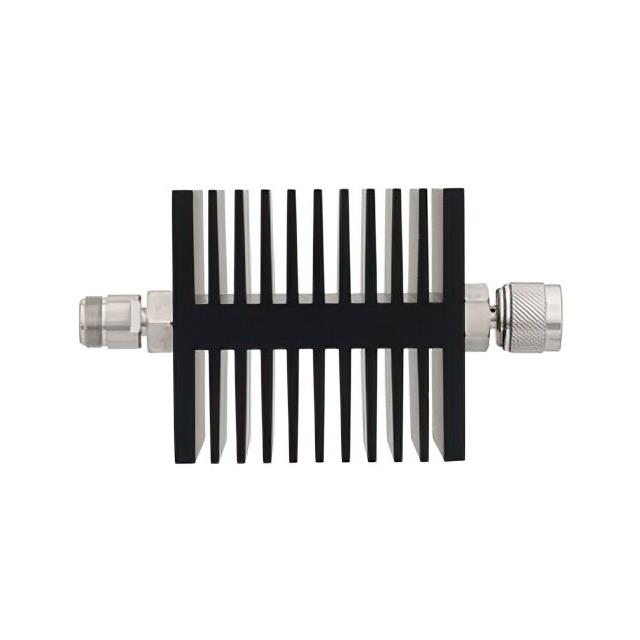

PE7317-30

Overview

The PE7317-30 is a fixed attenuator manufactured by Pasternack. It provides a nominal attenuation of 30 dB with N female to N male connectors. The device operates from DC to 18 GHz and supports a power rating of 50 watts. It features a 50-ohm impedance, a VSWR of 1.2:1, and an operating temperature range of -65°C to +125°C.

Feature Summary

• Provides precise 30 dB signal attenuation for RF applications
• Operates effectively across a wide frequency spectrum up to 18 GHz
• Constructed with durable N-type connectors for reliable interconnection

Applications

• RF test and measurement setups requiring signal reduction
• Communication systems needing precise power level adjustment
• Aerospace and defense electronic equipment integration

Procurement Notes

Verify the specific datasheet version and connector orientation details before ordering. Confirm that the 50-watt power rating aligns with your system's thermal management capabilities. Ensure the 18 GHz frequency limit meets your operational requirements. Cross-reference the physical dimensions against your installation space constraints to guarantee proper fitment within the assembly.

Selection Notes

Select this component when a high-frequency fixed attenuation value is required. The N-type interface ensures compatibility with standard coaxial infrastructure. Consider the 50-watt power handling capacity for high-power transmission lines. Verify that the 1.2:1 VSWR specification satisfies your system's signal integrity standards for minimal reflection losses.

Part Context

This part belongs to Pasternack's line of fixed attenuators designed for RF signal control. It serves as a passive component to reduce signal amplitude without distortion. The product complements other RF interconnect solutions by providing stable attenuation characteristics across its specified bandwidth.

Replacement Considerations

PE7317-10 offers identical specifications but with reversed connector orientation (N male to N female). Both parts share the same electrical performance metrics and physical form factor. Choose based on the required connector directionality for your specific circuit layout.
