PE7317-40

Overview

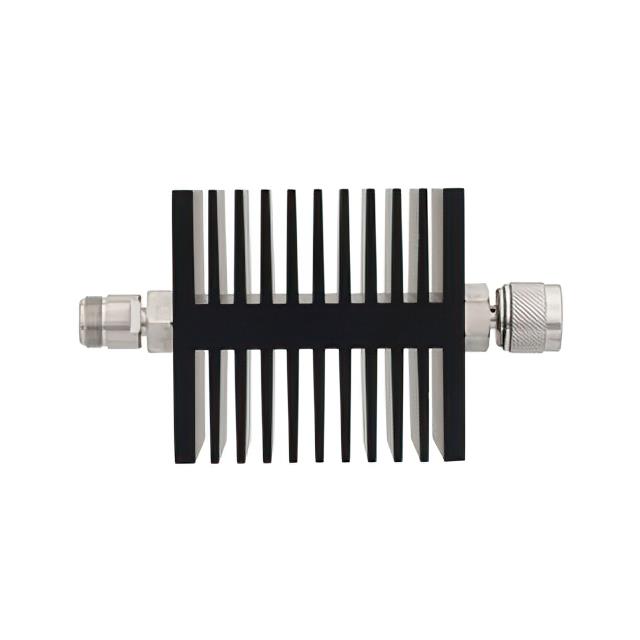

The Pasternack PE7317-40 is a fixed RF attenuator designed for high-frequency applications up to 18 GHz. It features Type N female-to-male connectors and provides a nominal attenuation of 40 dB. The unit is rated for 50 Watts of power handling and operates within a frequency range of 0 Hz to 18 GHz with a 50 Ohm impedance. Constructed with a black anodized aluminum heatsink body, it ensures thermal stability and durability in demanding RF environments.

Feature Summary

• Fixed 40 dB attenuation value
• Type N female to male connector configuration
• Black anodized aluminum heatsink body
• Rated for 50 Watts power handling

Applications

• RF signal level reduction
• Test and measurement setups
• Microwave system integration
• Signal conditioning circuits

Procurement Notes

Verify the specific datasheet for the PE7317-40 model to confirm exact electrical tolerances and mechanical dimensions. Ensure compatibility with existing Type N interfaces in your RF chain. Check for any regional distribution restrictions or lead times directly with authorized suppliers before finalizing procurement plans.

Selection Notes

Select this component when a precise 40 dB reduction is required at frequencies up to 18 GHz. The 50 Watt rating supports high-power applications, while the directional design aids in managing signal reflections. Confirm that the Type N interface matches your system requirements for seamless integration.

Part Context

This part belongs to Pasternack's line of fixed coaxial attenuators. It is engineered for reliability in microwave and RF systems. The series offers various attenuation values and power ratings to suit different signal processing needs across communication and testing infrastructure.

Replacement Considerations

Direct substitutes must match the 40 dB attenuation, Type N female-to-male interface, and 18 GHz frequency limit. Verify power handling capabilities and physical mounting constraints to ensure functional equivalence without modifying the surrounding circuit layout.

FAQ

What is the maximum operating frequency for the PE7317-40?

The PE7317-40 is rated for operation up to 18 GHz.

Does this attenuator have a directional design?

Yes, the PE7317-40 features a directional design with Type N female and male connectors.
