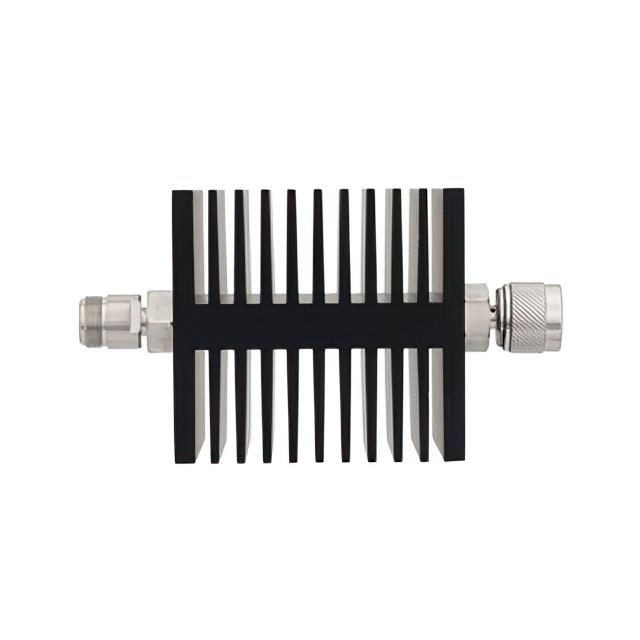

PE7317-6

Overview

The PE7317-6 is a fixed RF attenuator manufactured by Pasternack. It provides an attenuation value of 6 dB across a frequency range from 0 Hz to 18 GHz. The device operates at a nominal impedance of 50 Ohms and handles a maximum power rating of 50 Watts. It utilizes N-Type connectors for interface connections and is designed as an in-line module.

Feature Summary

• Provides precise 6 dB signal attenuation
• Operates up to 18 GHz frequency range
• Supports 50 Watt power handling capacity

Applications

• RF signal level control in communication systems
• Test and measurement equipment calibration
• Protecting sensitive components from high power signals

Procurement Notes

Verify the specific connector gender and cable length requirements if applicable, although this model is listed as an in-line module. Confirm the operating environment temperature range against datasheet specifications. Ensure the 50W power rating aligns with peak system demands. Check for RoHS compliance status if required by project standards. Validate the N-Type interface compatibility with existing infrastructure.

Selection Notes

Select this component when a fixed 6 dB reduction is required within the 0-18 GHz spectrum. The 50W power rating suits high-power applications compared to standard low-power attenuators. The N-Type interface offers robust mechanical connection for industrial environments. Consider thermal management solutions given the 50W dissipation capability.

Part Context

This part belongs to Pasternack's RF attenuator product line. It serves as a passive component for managing signal strength in radio frequency circuits. The N-Type interface is common in broadband applications requiring durable connections.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided source material.
