PE7321-30

Overview

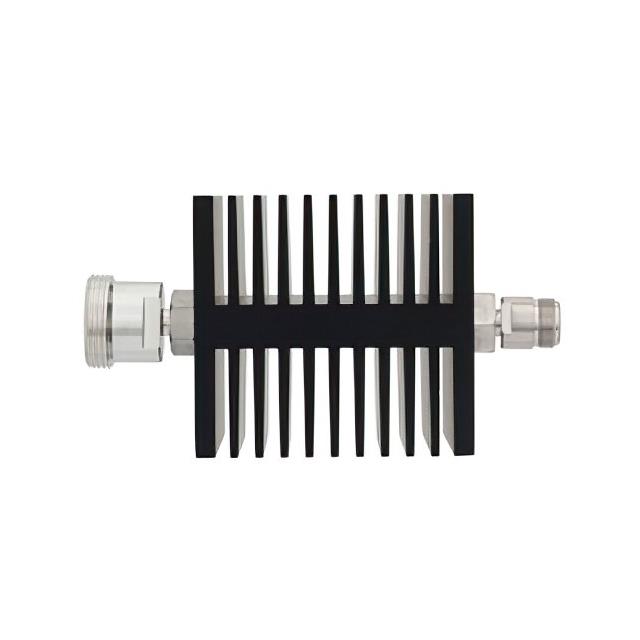

The Pasternack PE7321-30 is a fixed RF attenuator module designed for high-frequency applications. It provides a precise attenuation value of 30 dB across a frequency range extending from DC to 18 GHz. The component features a 7/16 DIN female connector on one port and an N female connector on the other, facilitating integration into diverse microwave systems. Rated for up to 50 Watts of power at the specified attenuation level, this device ensures signal management in demanding environments.

Feature Summary

• Provides fixed 30 dB attenuation for signal level reduction
• Operates effectively within a wide bandwidth up to 18 GHz
• Supports high power handling capabilities rated at 50 Watts
• Utilizes robust 7/16 DIN and N-type female connectors

Applications

• Microwave test and measurement setups requiring precise signal attenuation
• RF communication systems needing signal level control
• Satellite ground station equipment interfacing different connector standards
• Radar system components managing signal power levels

Procurement Notes

Verify that the specific part number PE7321-30 matches the required 30 dB attenuation and 18 GHz frequency range. Confirm compatibility between the 7/16 DIN female and N female connectors with existing system interfaces. Ensure the 50 Watt power rating aligns with operational requirements. Check RoHS compliance status if environmental regulations apply to the deployment environment.

Selection Notes

Select this model when a fixed 30 dB loss is necessary without variable adjustment. The mixed connector configuration allows direct connection between 7/16 DIN and N-type ports, eliminating the need for separate adapters. Consider the 18 GHz upper frequency limit to ensure performance stability at higher frequencies. Evaluate the 50 Watt power capacity against peak signal levels to prevent damage or thermal issues during operation.

Part Context

This component belongs to the Pasternack fixed attenuator series, which offers various attenuation values and connector combinations. The PE7321-30 specifically addresses scenarios requiring significant signal reduction in broadband microwave applications. Its design supports reliable performance in both laboratory and field environments, contributing to overall system integrity by managing signal strength accurately.

Replacement Considerations

Direct substitutes may include other Pasternack models with identical 30 dB attenuation and 18 GHz specifications but different connector types. Verify that any replacement maintains the same power rating and impedance characteristics. Cross-reference with generic industry attenuators only if connector interfaces can be adapted without compromising signal integrity.
