PE7321-50

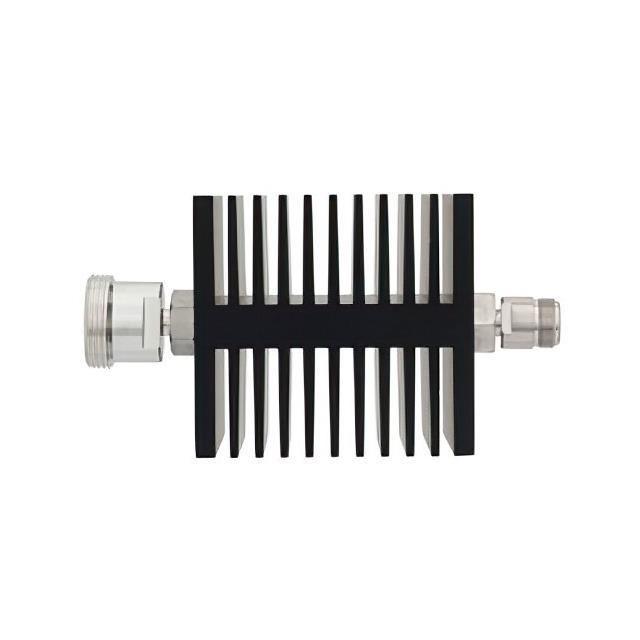

Overview

The Pasternack PE7321-50 is a fixed RF attenuator module designed for high-power applications. It provides a nominal attenuation of 50 dB with a frequency range extending from 0 Hz to 6 GHz. The component operates at a characteristic impedance of 50 Ohms and supports a maximum power handling capacity of 50 Watts at the stated attenuation value. This module utilizes 7/16 DIN connectors, ensuring robust mechanical integrity and reliable signal transmission in demanding RF environments.

Feature Summary

• Fixed 50 dB attenuation performance across a broad frequency spectrum
• High power handling capability rated at 50 Watts
• Robust 7/16 DIN connector interface for secure connections

Applications

• RF signal level reduction in test and measurement setups
• Power management in microwave communication systems
• Signal conditioning in satellite communication equipment

Procurement Notes

Verify the specific connector gender configuration and physical dimensions against system requirements before integration. Confirm that the operating environment remains within the specified temperature and power limits to ensure long-term reliability. Cross-reference the datasheet for precise electrical tolerances and mounting instructions to maintain signal integrity.

Selection Notes

Select this model when a fixed 50 dB attenuation is required at frequencies up to 6 GHz. Ensure the system impedance matches the 50 Ohm specification to minimize reflections. Consider the 50 Watt power rating to prevent thermal damage during operation. Verify compatibility with existing 7/16 DIN interfaces in the signal chain.

Part Context

This component belongs to Pasternack's line of fixed RF attenuators, which are engineered for precision and durability in microwave applications. The series offers various attenuation values and connector types to suit different system architectures. These modules are typically used to protect sensitive downstream components or to adjust signal levels in complex RF networks.

Replacement Considerations

Direct substitutes must match the 50 dB attenuation, 50 Ohm impedance, and 7/16 DIN interface. Verify that alternative models support the same 50 Watt power rating and 6 GHz frequency range. Ensure mechanical compatibility and electrical performance equivalence to avoid system redesign.
