PE7322-10

Overview

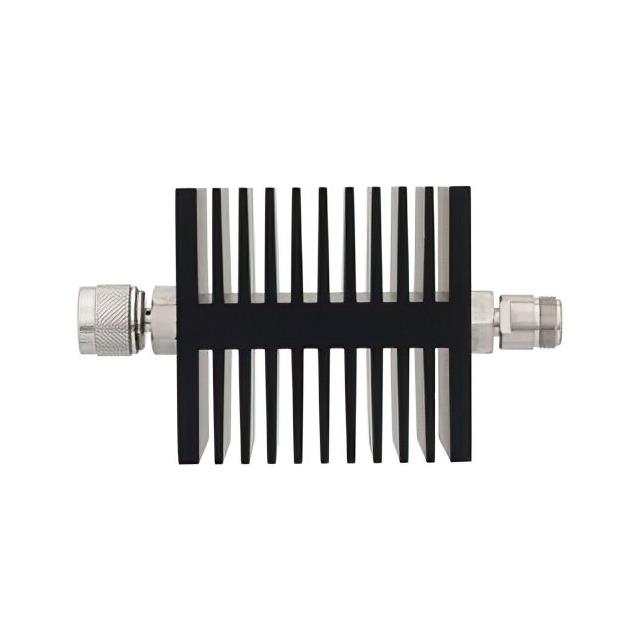

The Pasternack PE7322-10 is a 10 dB fixed RF attenuator designed for high-frequency applications up to 18 GHz. It features N-type connectors with male gender on side 1 and female gender on side 2, providing an in-line directional configuration. The unit is rated for 50 Watts power dissipation at the stated attenuation value and operates within a 50 Ohm impedance system. Constructed with a black anodized aluminum heatsink body, it ensures thermal stability and durability in demanding environments.

Feature Summary

• Directional in-line design with N-type male-to-female connector interface
• High power handling capability rated at 50 Watts
• Broadband frequency performance extending to 18 GHz
• Durable black anodized aluminum heatsink body construction

Applications

• RF signal level reduction in microwave test setups
• Impedance matching and protection in communication systems
• Signal conditioning in radar and electronic warfare equipment
• Laboratory measurement and calibration environments

Procurement Notes

Verify that the required attenuation value of 10 dB aligns with system specifications before procurement. Confirm compatibility with N-type connector interfaces and ensure the 50 Watt power rating exceeds maximum expected signal levels. Check for availability of datasheets confirming the 18 GHz frequency range and 50 Ohm impedance requirements for your specific application environment.

Selection Notes

Select this model when a precise 10 dB reduction is needed within an 18 GHz bandwidth. Ensure the system utilizes N-type connectors and can accommodate the directional in-line form factor. Consider the 50 Watt power rating for high-power applications and verify that the black anodized aluminum housing meets environmental durability requirements for the installation site.

Part Context

This component belongs to Pasternack's series of fixed coaxial attenuators, which offer various attenuation values and connector configurations. The PE7322 series specifically targets high-power, broadband applications requiring reliable signal attenuation up to 18 GHz. These units are engineered for consistent performance in RF and microwave systems where stable attenuation and robust construction are critical.

Replacement Considerations

Direct substitutes include other Pasternack models with identical 10 dB attenuation, N-type male-to-female interfaces, and 50 Watt ratings within the 18 GHz range. Verify that any replacement maintains the same directional in-line configuration and physical connector gender to ensure seamless integration without adapter usage.
