PE7322-6

Overview

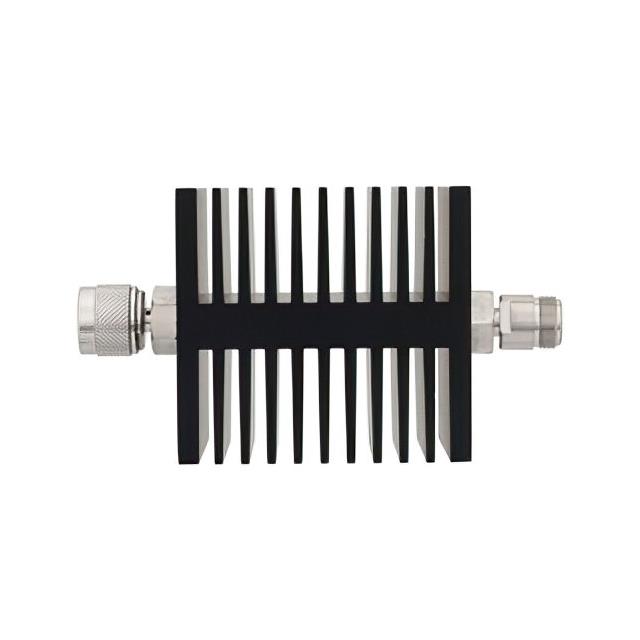

The Pasternack PE7322-6 is a fixed RF attenuator rated for operation from DC to 18 GHz. It features an N-type male connector on one side and an N-type female connector on the other, providing a nominal attenuation of 6 dB at 50 Ohms impedance. The device is designed with a directional black anodized aluminum heatsink to manage thermal loads, supporting up to 50 Watts of power at the specified attenuation value.

Feature Summary

• Directional design utilizing a black anodized aluminum heatsink for effective thermal management
• N-type male to N-type female interface configuration for standard coaxial integration
• Rated for high power handling capabilities up to 50 Watts at the stated attenuation level

Applications

• Microwave signal level reduction in test and measurement setups
• RF circuit protection by lowering signal amplitude before sensitive components
• Impedance matching and power control in wireless communication systems

Procurement Notes

Verify that the specific order matches the PE7322-6 part number to ensure the correct 6 dB attenuation value and N-type male-to-female configuration. Confirm that the application environment supports the 18 GHz frequency range and 50 Watt power rating. Check datasheet specifications for VSWR and attenuation accuracy tolerances relevant to your system requirements.

Selection Notes

Select this component when a precise 6 dB reduction is required within the DC to 18 GHz spectrum. Ensure the system impedance is 50 Ohms to maintain signal integrity. The directional heatsink design makes it suitable for applications requiring robust thermal dissipation during continuous high-power operation compared to non-directional alternatives.

Part Context

This model belongs to Pasternack's line of fixed RF attenuators, specifically designed for microwave frequencies. It serves as a passive component to control signal strength without introducing significant distortion. The series offers various attenuation values and connector combinations to fit diverse RF infrastructure needs.

Replacement Considerations

Direct substitutes must match the 6 dB attenuation, 18 GHz frequency limit, and N-type male/female interface. Verify that alternative parts support the same 50 Watt power rating and utilize compatible mounting or thermal management solutions.
