PE7323-10

Overview

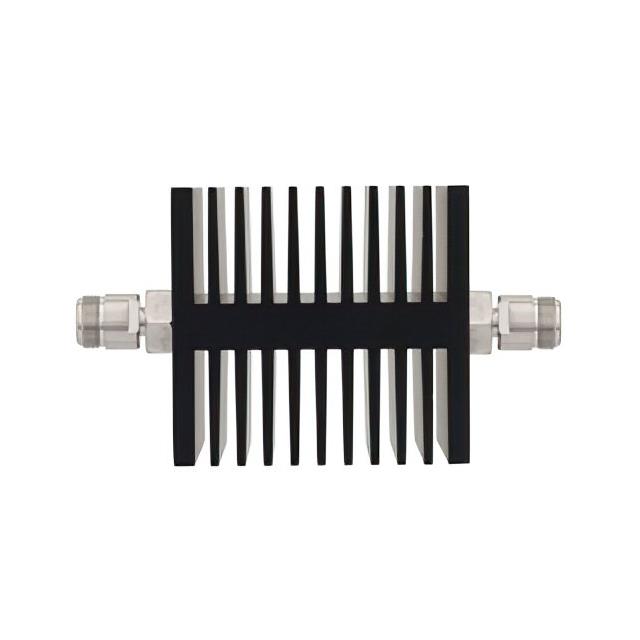

The PE7323-10 is a fixed 10 dB attenuator manufactured by Pasternack. It features N-type female connectors on both input and output ports, providing a standard interface for coaxial systems. The device operates within a frequency range of 0 Hz to 18 GHz and is rated for a maximum power handling capacity of 50 Watts. Constructed as an in-line module, it utilizes a resistive PI attenuator pad design to ensure stable attenuation performance across its specified bandwidth.

Feature Summary

• In-line resistive PI attenuator pad design
• N-type female connector interface on both sides
• Directional black housing construction

Applications

• RF signal level reduction in test and measurement setups
• Impedance matching in high-frequency communication systems
• Signal attenuation for equipment protection up to 18 GHz

Procurement Notes

Verify the specific datasheet version for the PE7323-10 to confirm mechanical dimensions and connector gender details. Ensure that the required operating frequency does not exceed 18 GHz and that the power load remains within the 50 Watt limit. Cross-reference the part number with official Pasternack documentation to confirm availability and technical specifications before procurement.

Selection Notes

Select the PE7323-10 when a precise 10 dB attenuation value is required for N-type coaxial connections. This model is suitable for applications demanding operation up to 18 GHz with moderate power handling capabilities. Consider the directional nature of the component and its fixed attenuation characteristics when designing the RF chain.

Part Context

This component belongs to the Pasternack series of fixed RF attenuators. These devices are designed to provide consistent signal reduction without active components. The PE7323-10 specifically addresses needs for N-type interfaces, distinguishing it from other models that may use TNC or SMA connectors or offer different attenuation values.

Replacement Considerations

Direct substitutes must match the 10 dB attenuation value, N-type female connectors, and 18 GHz frequency range. Verify that any alternative component maintains the 50 Watt power rating and similar physical form factor for direct integration.
