PE7323-20

Overview

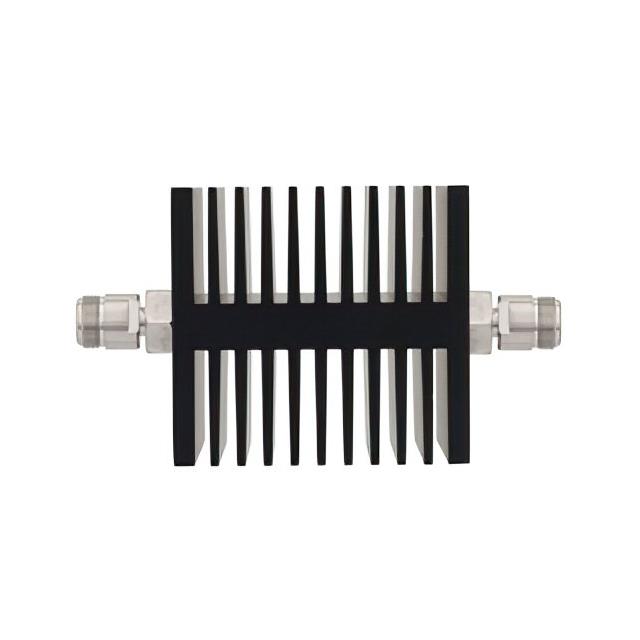

The PE7323-20 is a fixed RF attenuator from Pasternack, designed for in-line applications within radio frequency systems. It provides a precise attenuation value of 20 dB across a frequency range extending from 0 Hz to 18 GHz. The component utilizes N-Type female connectors on both input and output ports, ensuring compatibility with standard coaxial infrastructure. It is rated for a maximum power handling capacity of 50 Watts, making it suitable for moderate power levels in test and measurement environments. The unit operates at a characteristic impedance of 50 Ohms, maintaining signal integrity throughout the attenuation process.

Feature Summary

• Provides fixed 20 dB attenuation for signal level reduction
• Operates effectively up to 18 GHz frequency range
• Features N-Type female connectors for direct integration
• Supports continuous power handling up to 50 Watts

Applications

• RF test and measurement setups requiring signal reduction
• Communication system signal conditioning
• Laboratory equipment calibration circuits

Procurement Notes

Verify the specific datasheet version for the PE7323-20 to confirm mechanical dimensions and connector gender details before integration. Ensure that the operating environment remains within the specified 50 Watt power limit to prevent damage. Cross-reference the N-Type interface requirements with existing cabling assemblies to guarantee proper mating and impedance matching.

Selection Notes

Select this component when a fixed 20 dB reduction is required at frequencies up to 18 GHz. The N-Type interface dictates compatibility with existing coaxial hardware. Consider the 50 Watt power rating against peak and average signal levels in the circuit. This model is appropriate for applications needing stable attenuation without variable adjustment capabilities.

Part Context

This part belongs to Pasternack's line of fixed attenuators, specifically the PE7323 series. These components are engineered for broadband performance and reliable operation in RF environments. The series offers various attenuation values while maintaining consistent impedance and connector types across different models.

Replacement Considerations

Direct substitutes may include other 20 dB N-Type fixed attenuators from Pasternack or compatible manufacturers offering identical electrical specifications and mechanical interfaces. Verify frequency range and power handling capabilities match the original design requirements.
