PE7323-3

Overview

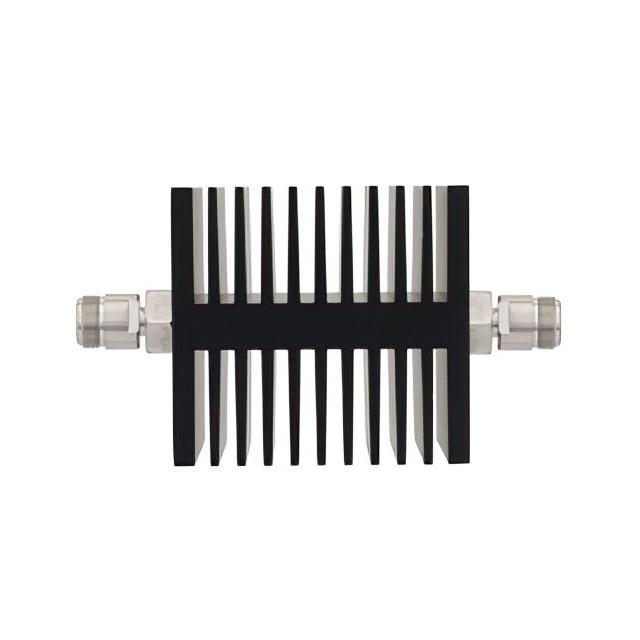

The Pasternack PE7323-3 is a fixed RF attenuator module designed for in-line applications. It provides a precise attenuation value of 3 dB across a frequency range from 0 Hz to 18 GHz. The component features N-Type connectors with female gender on both sides, ensuring compatibility with standard coaxial systems. It is rated for a maximum power handling capacity of 50 Watts at the stated attenuation level. The unit operates within an impedance environment of 50 Ohms and is housed in a black directional enclosure suitable for microwave signal management.

Feature Summary

• Provides fixed 3 dB attenuation for signal level control
• Operates up to 18 GHz frequency range
• Features N-Type female connectors on both ports
• Rated for 50 Watts power handling capacity

Applications

• Microwave signal testing and measurement setups
• RF system calibration and reference signal generation
• Signal path loss compensation in communication links

Procurement Notes

Verify that the connector gender matches the system requirements, as this model specifies female-to-female interfaces. Confirm the operating frequency does not exceed 18 GHz and that the power load remains within the 50 Watt limit. Ensure the environmental conditions align with the component's operational specifications before integration into the final assembly.

Selection Notes

Select this component when a precise 3 dB reduction is required in high-frequency applications up to 18 GHz. It is suitable for systems utilizing N-Type connectors where a 50 Ohm impedance match is necessary. Consider the 50 Watt power rating to ensure it meets the peak power demands of the specific RF chain without thermal degradation or performance loss.

Part Context

This part belongs to the Pasternack series of fixed RF attenuators. These components are engineered to provide stable attenuation values across wide bandwidths. The PE7323-3 specifically utilizes N-Type interfaces, which are common in industrial and telecommunications equipment requiring robust mechanical connections and reliable performance at microwave frequencies.

Replacement Considerations

No public confirmed substitute part numbers are available.
