PE7323-40

Overview

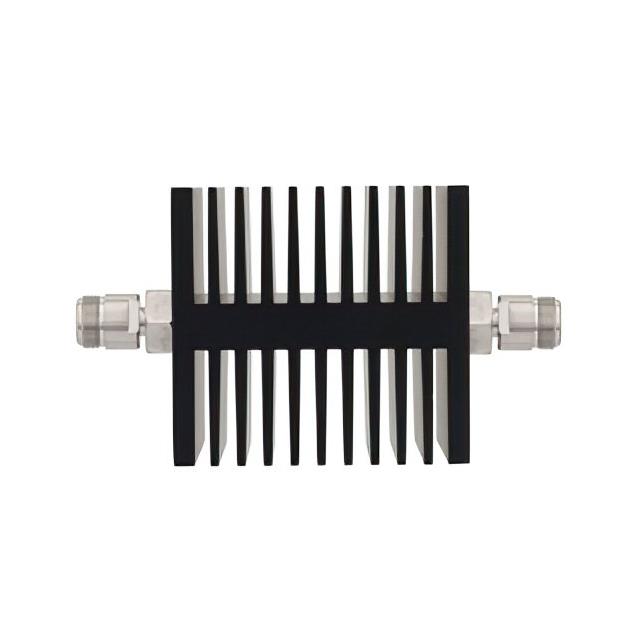

The PE7323-40 is a fixed 40 dB attenuator from Pasternack, designed for in-line applications. It features N-Type female connectors on both sides and operates within a frequency range of DC to 18 GHz. The component utilizes a resistive PI attenuator pad design and maintains a 50 Ohm impedance. It is rated for a power handling capacity of 50W.

Feature Summary

• Fixed 40 dB attenuation value
• N-Type female to female interface
• DC to 18 GHz operational bandwidth
• Resistive PI attenuator pad design

Applications

• RF signal level reduction
• Impedance matching in coaxial systems
• Test and measurement setups
• Microwave circuit protection

Procurement Notes

Verify the specific connector gender and impedance match with system requirements before ordering. Confirm that the 50W power rating aligns with peak signal levels to prevent damage. Ensure the N-Type interface compatibility with existing cables and fixtures. Check for any environmental specifications if operating outside standard conditions.

Selection Notes

Select this model when a precise 40 dB attenuation is required at frequencies up to 18 GHz. The N-Type interface suits general-purpose RF applications. Consider the 50W power handling for high-power scenarios. Compare with other Pasternack attenuators if different attenuation values or connector types are needed.

Part Context

This component belongs to Pasternack's line of RF attenuators, which provide controlled signal reduction. Attenuators are essential for maintaining signal integrity and protecting sensitive equipment from excessive power levels in microwave and RF circuits.

Replacement Considerations

Direct substitutes may include other 40 dB fixed attenuators with N-Type female connectors and similar frequency/power ratings. Verify exact electrical parameters and mechanical dimensions before substitution.
