PE7323-50

Overview

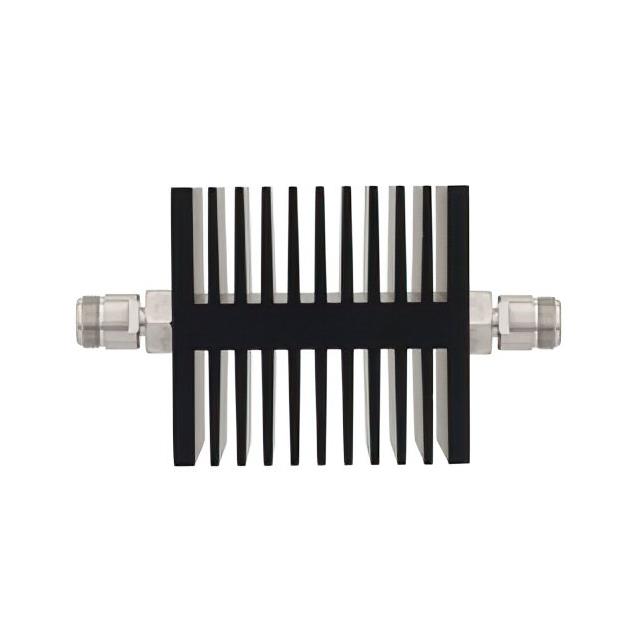

The PE7323-50 is a fixed RF attenuator manufactured by Pasternack Enterprises. It provides an attenuation value of 50 dB with a frequency range extending from DC to 18 GHz. The device supports a maximum power handling capacity of 50 Watts at the stated attenuation level. It features N female connectors on both input and output ports, ensuring compatibility with standard coaxial systems. The unit maintains a characteristic impedance of 50 Ohms throughout its operational bandwidth.

Feature Summary

• Provides precise 50 dB signal reduction across a wide frequency spectrum
• Supports high power handling up to 50 Watts for robust operation
• Utilizes N female connectors for reliable coaxial interface integration

Applications

• RF test and measurement setups requiring signal level adjustment
• Microwave system calibration and verification procedures
• High-power transmission line monitoring and control

Procurement Notes

Verify the specific model designation PE7323-50 against official Pasternack documentation to confirm the 50 dB attenuation rating and 50 Watt power handling capabilities. Ensure connector types match system requirements before procurement. Cross-reference datasheet specifications for impedance and frequency range to guarantee compatibility with existing RF infrastructure components.

Selection Notes

Select this component when a fixed 50 dB attenuation is required within an 18 GHz bandwidth. Consider the 50 Watt power rating for high-energy applications. Verify that N female connectors align with the connected cable assemblies. This model is suitable for environments demanding stable attenuation without variable adjustment needs.

Part Context

This part belongs to the Pasternack PE7323 series of fixed attenuators. The series includes various attenuation values such as 3, 6, 10, 20, and 40 dB, all sharing similar physical characteristics and power ratings. The PE7323-50 represents the highest attenuation option in this directional black housing lineup, designed for significant signal reduction tasks.

Replacement Considerations

Direct substitutes include other PE7323 series models if different attenuation levels are acceptable. Generic replacements must match the 50 Ohm impedance, N female connectors, and 18 GHz frequency range. Ensure any alternative component meets or exceeds the 50 Watt power handling specification for safe operation.
