PE7337-30

$689.52

Description：30 dB Fixed Attenuator, SMA Fema
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:0506bc0b9b9e Category: Attenuators Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：30 dB Fixed Attenuator, SMA Fema
Series：-
Mfr：Pasternack
Package：Retail Package
Attenuation Value：30dB
Frequency Range：0 Hz ~ 18 GHz
Power (Watts)：50W
Impedance：50 Ohms
Grade：-
Qualification：-
Package / Case：SMA In-Line Module

Download product information

PE7337-30

Overview

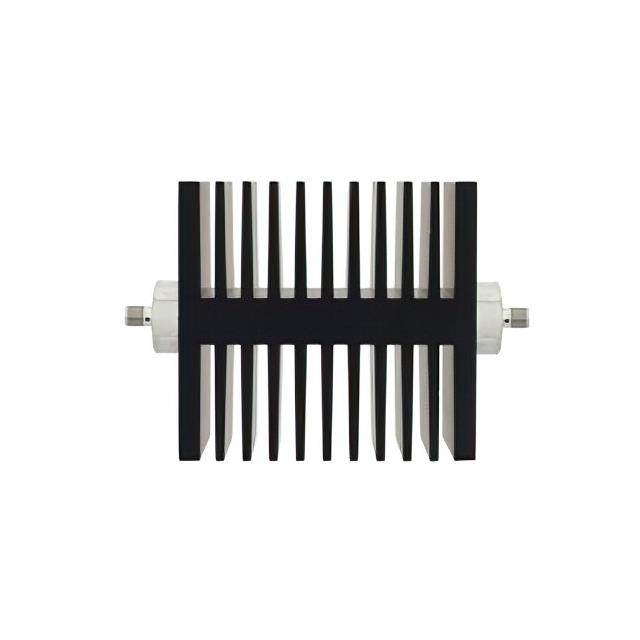

The PE7337-30 is a fixed 30 dB attenuator manufactured by Pasternack. It features SMA female to SMA female connectors and utilizes a resistive PI attenuator pad design. The device operates within a frequency range of 0 Hz to 18 GHz. It has a power rating of 50 watts and an impedance of 50 ohms. The housing is made of black anodized aluminum.

Feature Summary

Fixed 30 dB attenuation value for signal level control
SMA female to SMA female connector configuration
Resistive PI attenuator pad design
Black anodized aluminum heatsink body

Applications

RF signal attenuation in test and measurement setups
Signal conditioning in wireless communication systems
Component testing within high-frequency circuit environments

Procurement Notes

Verify the specific datasheet version for the PE7337-30 to confirm current manufacturing status and technical specifications. Ensure compatibility with SMA female interfaces and 50-ohm system requirements before integration. Check for any recent updates regarding material composition or performance tolerances in official Pasternack documentation.

Selection Notes

Select this component when a precise 30 dB reduction is required up to 18 GHz. The 50-watt power handling capacity suits moderate power applications. The directional SMA female-to-female interface facilitates inline insertion. Consider the physical dimensions and thermal dissipation capabilities of the aluminum body for enclosure planning.

Part Context

This model belongs to Pasternack's line of fixed RF attenuators. It provides stable attenuation characteristics across a wide bandwidth. The product is designed for reliable performance in demanding RF environments. It serves as a passive component for managing signal strength in coaxial circuits.

Replacement Considerations

Compatible substitutes include other 30 dB fixed attenuators with SMA female connectors and similar frequency ranges, such as the PE7337-40 or PE7337-50 from the same manufacturer series, provided power ratings and interface types match application needs.
