PE7337-6

Overview

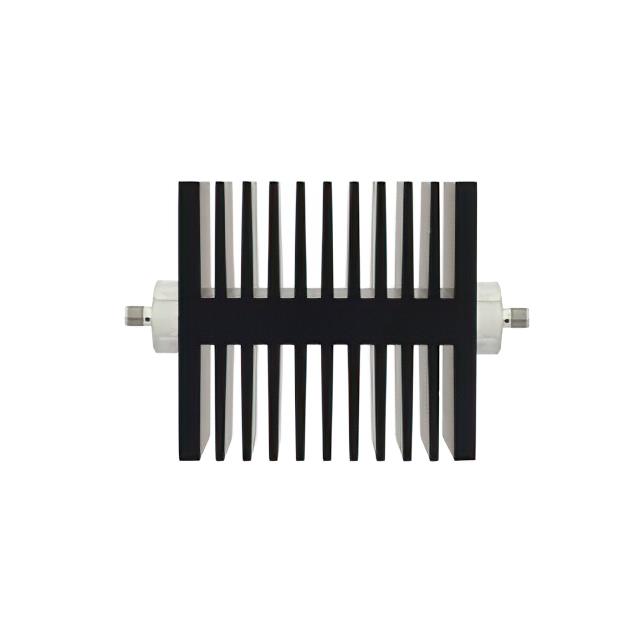

The Pasternack PE7337-6 is a fixed attenuator featuring SMA female connectors on both input and output ports. It provides a nominal attenuation value of 6 dB and is rated for up to 50 watts of power handling capability within a frequency range extending to 18 GHz. The component utilizes a bulk packaging format.

Feature Summary

• Provides fixed signal attenuation via SMA female-to-female interface
• Rated for high power handling up to 50 watts
• Operational frequency range extends to 18 GHz

Applications

• RF signal level reduction in wireless communication systems
• Impedance matching and protection in test and measurement setups
• Signal conditioning in microwave circuitry

Procurement Notes

Verify the specific datasheet version for precise VSWR and return loss values, as these parameters can vary by manufacturing lot. Confirm that the SMA connector gender and mating hardware requirements align with your system interface before procurement. Ensure the operating environment remains within the specified thermal limits for continuous 50-watt operation.

Selection Notes

Select this model when a fixed 6 dB reduction is required at frequencies up to 18 GHz. The SMA interface suits standard laboratory and commercial RF applications. Consider the 50-watt power rating against peak signal levels to prevent damage. Alternative attenuation values or connector types may be necessary if higher precision or different impedance matching is required.

Part Context

This component belongs to the Pasternack attenuator product line, designed for RF and microwave signal management. It serves as a passive device to control signal amplitude without introducing significant distortion. The series supports various attenuation values and connector configurations to meet diverse system integration needs.

Replacement Considerations

Direct substitutes include other 6 dB fixed attenuators with SMA female connectors rated for similar power and frequency ranges. Verify mechanical dimensions and mounting style compatibility. Check manufacturer specifications for equivalent electrical performance metrics such as insertion loss tolerance and VSWR.
