PE7363-10

Overview

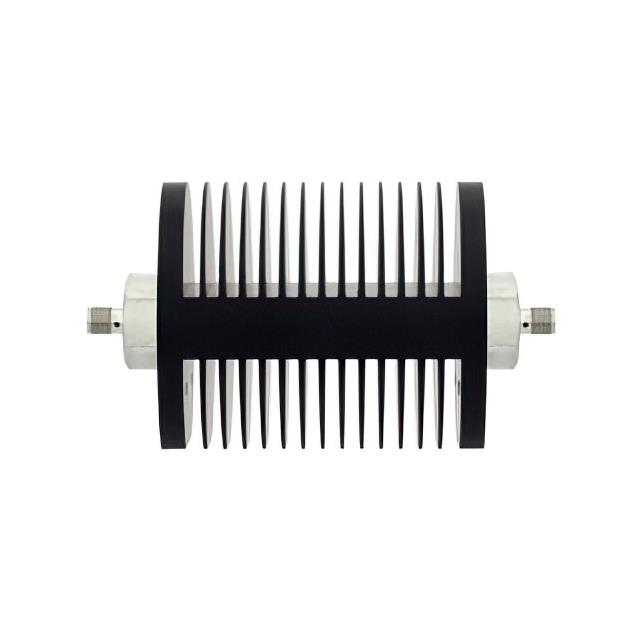

The Pasternack PE7363-10 is a fixed 10 dB RF attenuator designed for in-line applications. It features SMA female connectors on both ends and operates within a frequency range of DC to 18 GHz. The device utilizes a resistive PI attenuator pad design and maintains a 50 Ohm impedance. It is rated to handle up to 25 Watts of power at the stated attenuation value, ensuring reliable performance in high-frequency signal processing environments.

Feature Summary

• In-line resistive PI attenuator pad design
• SMA female to SMA female interface configuration
• Operates from DC to 18 GHz frequency range
• Rated for 25 Watts power handling

Applications

• Precision measurement systems
• Production test environments
• RF signal level adjustment

Procurement Notes

Verify the specific part number PE7363-10 against official Pasternack documentation to confirm SMA connector gender and 10 dB attenuation value. Ensure the application environment does not exceed the 18 GHz frequency limit or 25 Watt power rating. Cross-reference datasheets for precise mechanical dimensions and material specifications before integration.

Selection Notes

Select this component when a fixed 10 dB reduction is required in a 50 Ohm system operating up to 18 GHz. The SMA interface suits standard coaxial setups. Consider the 25 Watt power rating for thermal management. Verify that the inline module form factor fits the physical constraints of the assembly compared to other attenuator styles.

Part Context

This model belongs to Pasternack's line of fixed RF attenuators, which includes variants with different attenuation values such as the PE7363-40 (40 dB). These components are engineered for microwave applications requiring stable signal attenuation across wide bandwidths without significant reflection.

Replacement Considerations

Direct substitutes must match the 10 dB attenuation, SMA female-female interface, 50 Ohm impedance, and 18 GHz frequency range. Verify power handling capabilities align with the 25 Watt rating. Check mechanical compatibility for inline mounting.
