PE7366-30

Overview

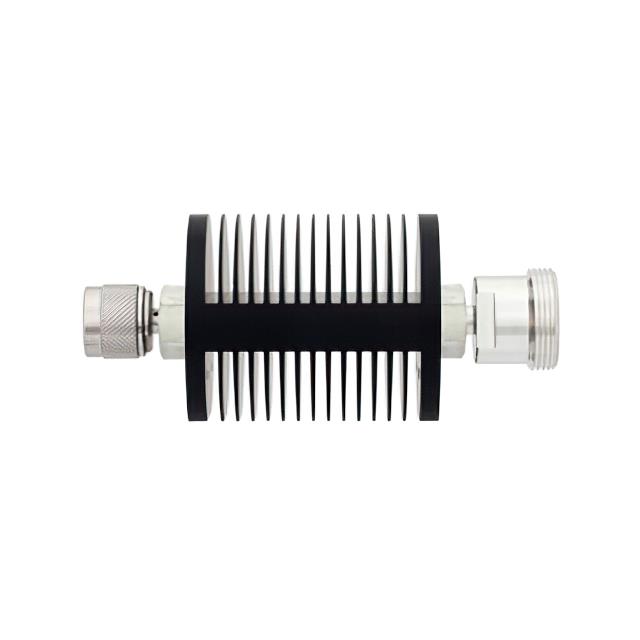

PE7366-30 is a fixed 30 dB attenuator manufactured by Pasternack. It features N Male to 7/16 DIN Female connectors and operates within a frequency range of 0 Hz to 7.5 GHz. The device maintains a 50 Ohm impedance and is rated for 25 Watts of power handling. Constructed with a black anodized aluminum heatsink body, it utilizes an in-line resistive PI attenuator pad design for signal attenuation.

Feature Summary

• Fixed 30 dB signal attenuation using a resistive PI pad design
• Compatible with N Male and 7/16 DIN Female connector interfaces
• Black anodized aluminum heatsink body for thermal management

Applications

• RF signal level reduction in test and measurement setups
• Protection of sensitive receiver inputs from high power signals
• Integration into coaxial RF systems requiring precise attenuation

Procurement Notes

Verify the specific connector gender configuration matches the application requirements, as N Male to 7/16 DIN Female combinations are distinct. Confirm that the 25 Watt power rating and 7.5 GHz frequency limit align with system operational parameters. Ensure the black anodized finish meets environmental corrosion resistance standards for the intended deployment environment.

Selection Notes

Select this component when a fixed 30 dB attenuation value is required between N Male and 7/16 DIN Female interfaces. Consider the 25 Watt power handling capacity and 7.5 GHz upper frequency limit against system demands. The heatsink body design supports higher power dissipation compared to non-heatsink variants, making it suitable for continuous wave applications.

Part Context

The PE7366-30 belongs to Pasternack's line of coaxial RF attenuators. These components are designed to reduce signal amplitude without introducing significant distortion. The series typically includes various attenuation values and connector combinations, serving as passive linear devices in radio frequency engineering and telecommunications infrastructure.

Replacement Considerations

Direct substitutes include other 30 dB fixed attenuators with matching N Male to 7/16 DIN Female interfaces. Verify equivalent power ratings (25W) and frequency ranges (up to 7.5 GHz). Alternative models may vary in body material or connector plating but must maintain identical electrical specifications for functional interchangeability.
