PE7366-50

Overview

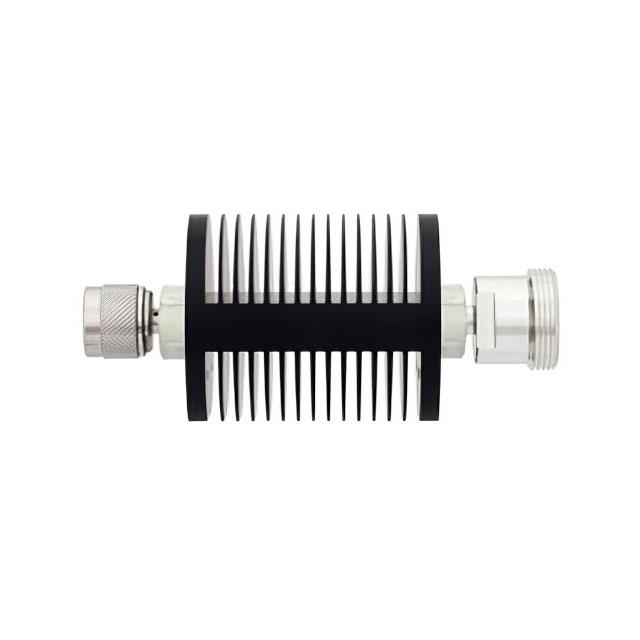

The PE7366-50 is a fixed 50 dB attenuator manufactured by Pasternack. It features a Type N male connector on one side and a 7/16 DIN female connector on the other. The device operates within a frequency range of 0 Hz to 6 GHz. It is rated for 25 Watts of power at the stated attenuation value. The unit utilizes an in-line, resistive PI attenuator pad design. The housing is black anodized.

Feature Summary

• Fixed 50 dB attenuation level
• Resistive PI attenuator pad design
• Black anodized housing

Applications

• RF signal reduction
• Test and measurement setups
• Microwave system integration

Procurement Notes

Verify the specific connector gender configuration matches the requirement of Type N male to 7/16 DIN female. Confirm that the 25 Watt power rating and 6 GHz frequency limit are sufficient for the intended application environment before finalizing the order.

Selection Notes

Select this component when a precise 50 dB loss is required between different connector standards. Ensure the system impedance is 50 Ohms. Consider the physical size and mounting requirements associated with the black anodized metal housing during system design.

Part Context

This model belongs to Pasternack's series of fixed attenuators designed for commercial grade applications. It provides reliable signal attenuation using durable nickel-plated brass bodies with gold-plated center contacts, ensuring consistent performance across the specified frequency band.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
