PE7366-6

Overview

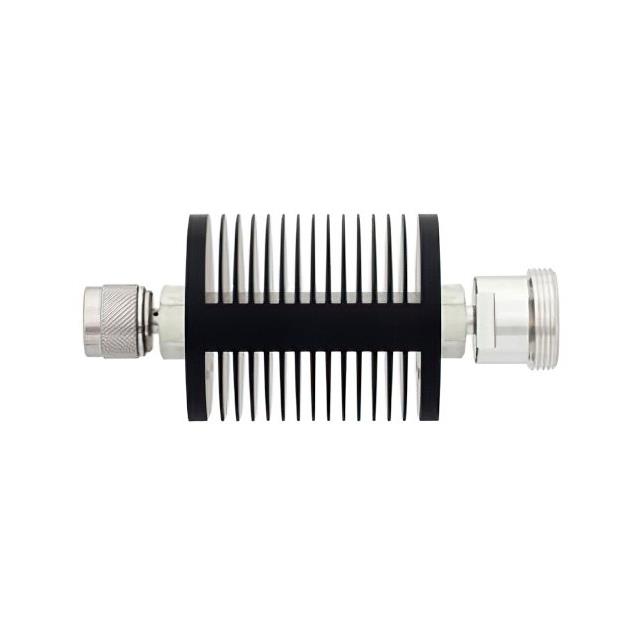

The Pasternack PE7366-6 is a fixed RF attenuator module designed for high-frequency applications. It provides a precise attenuation value of 6 dB and operates within a frequency range of 0 Hz to 7.5 GHz. The component features an N Male connector on one side and a 7/16 DIN Female connector on the other, facilitating integration into various microwave systems. It is rated to handle up to 25 Watts of power at the stated attenuation level, ensuring reliable performance in demanding signal processing environments.

Feature Summary

• Provides a fixed 6 dB attenuation value for signal level control
• Operates across a wide frequency spectrum from DC to 7.5 GHz
• Supports high power handling capabilities up to 25 Watts
• Utilizes robust N Male and 7/16 DIN Female interface connections

Applications

• Microwave signal conditioning and monitoring
• RF test and measurement setups requiring precise attenuation
• Communication system power management
• Antenna feed line signal reduction

Procurement Notes

Verify that the specific application requires the unique combination of N Male and 7/16 DIN Female connectors, as this asymmetry differs from standard symmetric attenuators. Confirm that the operating power does not exceed the 25 Watt rating at the target frequency. Ensure environmental conditions align with the component's thermal specifications for sustained operation.

Selection Notes

Select this model when a fixed 6 dB loss is required between N-type and 7/16 DIN interfaces. Consider the 7.5 GHz upper frequency limit to ensure compatibility with the system's highest operational frequency. Evaluate the 25 Watt power capacity against peak signal levels to prevent damage or performance degradation during high-power transmission scenarios.

Part Context

This component belongs to Pasternack's line of fixed RF attenuators, which are engineered for stability and precision in microwave circuits. The PE7366-6 specifically addresses needs for converting between different connector standards while maintaining signal integrity. It serves as a critical passive element in RF chains where controlled signal reduction is necessary without introducing significant distortion.

Replacement Considerations

Public confirmed substitute part numbers: None identified.
