PE7367-20

Overview

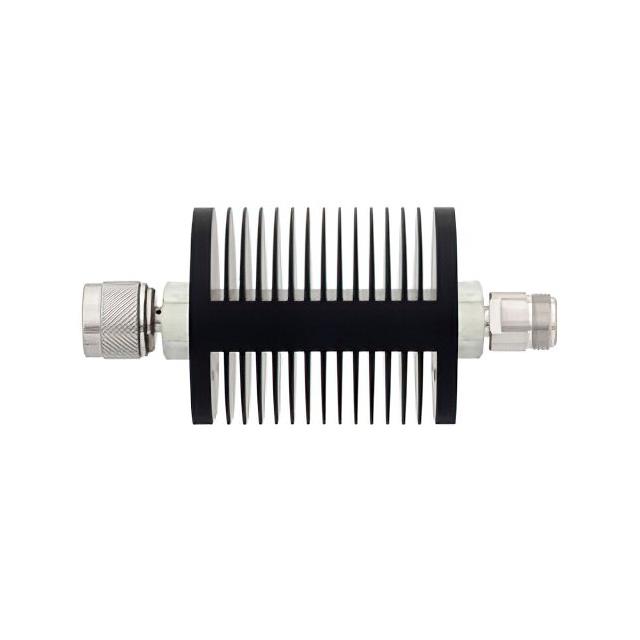

The Pasternack PE7367-20 is a fixed RF attenuator designed for high-frequency signal management. It features an N-Type connector interface with male gender on side one and female gender on side two. The component provides a precise attenuation value of 20 dB across a frequency range of 0 Hz to 18 GHz. It is rated for a maximum power handling capacity of 25 Watts at the stated attenuation level. The device operates within a standard impedance environment of 50 Ohms, ensuring compatibility with standard coaxial systems.

Feature Summary

• Provides fixed 20 dB signal attenuation for consistent power reduction
• Operates effectively from DC up to 18 GHz frequency range
• Supports high power handling capability of 25 Watts
• Features N-Type connectors for secure in-line integration

Applications

• High-frequency test and measurement instrumentation
• Telecommunications equipment signal conditioning
• RF circuit power level adjustment
• Microwave system component protection

Procurement Notes

Verify the specific connector genders (N-Type Male to Female) and the 20 dB attenuation value against project requirements. Confirm that the 25 Watt power rating and 18 GHz frequency limit align with the operational environment. Ensure the 50 Ohm impedance matches the surrounding system infrastructure to prevent signal reflection issues during procurement.

Selection Notes

Select this model when a fixed 20 dB reduction is required in N-Type systems operating up to 18 GHz. Consider the 25 Watt power handling if high-power signals are present. Compare against adjustable alternatives if variable attenuation is needed. Verify physical dimensions and mounting style if space constraints exist within the assembly.

Part Context

This component belongs to the Pasternack PE7367 series of fixed attenuators. These devices are engineered for reliable performance in demanding RF environments. The series offers various attenuation values while maintaining consistent electrical characteristics across the frequency spectrum. They are designed for durability and precision in professional applications.

Replacement Considerations

Compatible substitutes include other 20 dB fixed N-Type attenuators from Pasternack or third-party manufacturers. Ensure replacement parts match the 0 Hz to 18 GHz frequency range and 25 Watt power rating. Verify identical N-Type Male to Female configuration and 50 Ohm impedance for seamless integration.
