PE7367-30

Overview

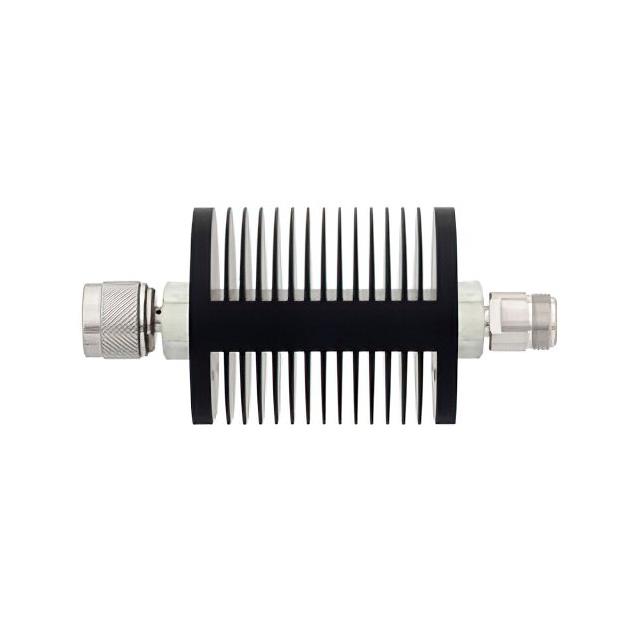

The Pasternack PE7367-30 is a fixed attenuator designed for RF applications, featuring N-type connectors. It provides a nominal attenuation of 30 dB with a maximum VSWR of 1.4:1 across its operational range. The device supports a frequency range from DC to 18 GHz and handles a maximum power of 2 watts. Constructed with gold-plated brass contacts and a black anodized aluminum body, it ensures durability and reliable signal performance in demanding environments.

Feature Summary

• Provides precise 30 dB signal attenuation for RF circuitry
• Operates effectively up to 18 GHz frequency range
• Features durable black anodized aluminum construction

Applications

• RF test and measurement equipment
• Wireless communication systems
• Signal distribution networks

Procurement Notes

Verify the specific connector gender configuration against project requirements, as N-type interfaces vary between male and female orientations. Confirm that the 2-watt power rating aligns with system power levels to prevent component damage. Ensure environmental conditions match the operating specifications for long-term reliability.

Selection Notes

Select this model when a fixed 30 dB reduction is required within an N-type system architecture. Consider the 18 GHz upper frequency limit for high-speed applications. Evaluate the physical size constraints against available mounting space in the assembly design.

Part Context

This component belongs to Pasternack's line of fixed attenuators, which are essential for managing signal strength in RF designs. These devices maintain impedance consistency while reducing power levels, ensuring safe operation for sensitive downstream components without introducing significant signal distortion or reflection.

Replacement Considerations

No public confirmed substitute part numbers are available.
