PE7367-6

Overview

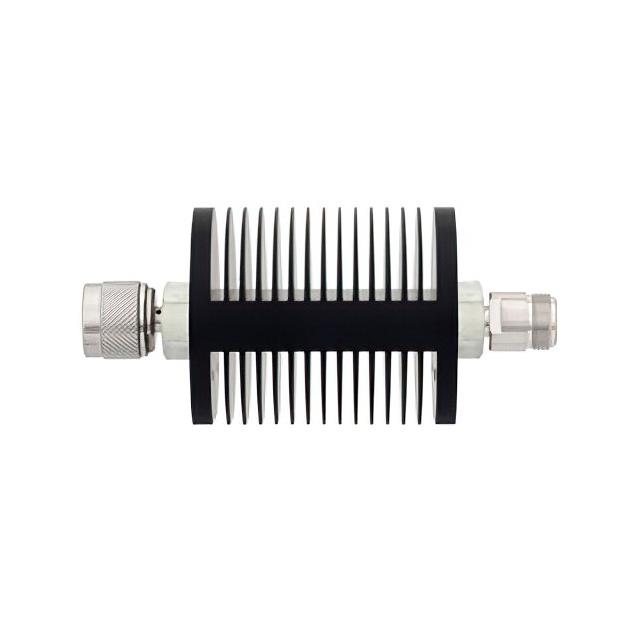

The Pasternack PE7367-6 is a fixed coaxial attenuator module designed for radio frequency applications. It provides a precise attenuation value of 6 dB across a frequency range extending from 0 Hz to 18 GHz. The device utilizes N-type connectors, featuring a male gender on one side and a female gender on the other, facilitating in-line integration into RF signal chains. Constructed with an anodized aluminum heatsink body, it supports a maximum power handling capacity of 25 watts. This component serves as a passive signal conditioning element within high-frequency electronic systems.

Feature Summary

• Fixed 6 dB attenuation performance
• Wideband operation up to 18 GHz
• N-type male to female connector interface
• Anodized aluminum heatsink construction

Applications

• RF signal level reduction
• Impedance matching networks
• Test and measurement equipment
• Communication system calibration

Procurement Notes

Verify the specific connector gender configuration and physical dimensions against schematic requirements before ordering. Confirm that the 25-watt power rating aligns with the operational thermal environment. Ensure the 18 GHz frequency limit covers the intended application bandwidth. Check for RoHS compliance status if required by project specifications. Validate compatibility with existing mounting hardware due to the heatsink form factor.

Selection Notes

Select this model when a fixed 6 dB loss is required at frequencies approaching 18 GHz. Consider the N-type interface for standard coaxial connections. Evaluate the 25-watt power handling against peak signal levels. The heatsink design aids in thermal management for continuous wave applications. Compare insertion loss specifications if lower attenuation values are needed.

Part Context

This component belongs to the family of fixed RF attenuators manufactured by Pasternack. These devices are engineered to provide stable, predictable signal reduction without active components. The PE7367-6 specifically addresses needs for moderate attenuation in broadband scenarios. It complements variable attenuators and directional couplers in comprehensive RF test setups.

Replacement Considerations

Substitute models must match the 6 dB attenuation value and 18 GHz upper frequency limit. Verify identical N-type male-to-female connector genders. Ensure comparable 25-watt power handling capabilities. Check for similar physical footprint to fit existing enclosures. Confirm equivalent VSWR performance for signal integrity.
