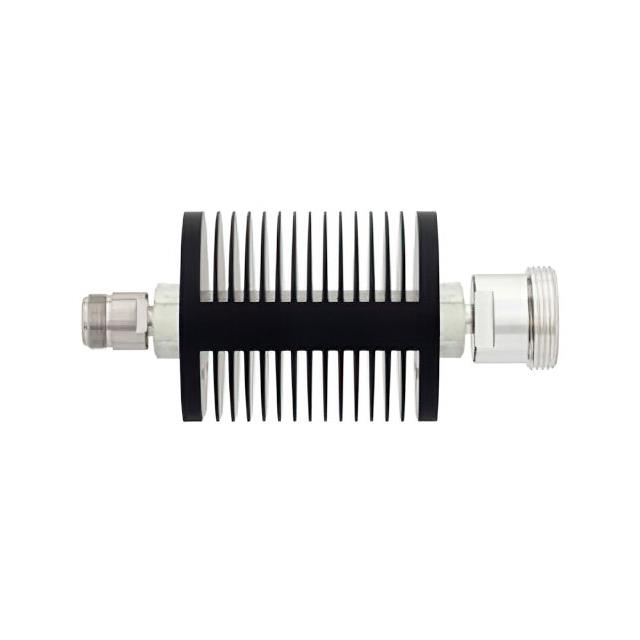

PE7369-10

$449.96

Description：10 dB Fixed Attenuator, N Female
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:123e95047091 Category: Attenuators Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：10 dB Fixed Attenuator, N Female
Series：-
Mfr：Pasternack
Package：Retail Package
Attenuation Value：10dB
Frequency Range：0 Hz ~ 7.5 GHz
Power (Watts)：25W
Impedance：50 Ohms
Grade：-
Qualification：-
Package / Case：Module

Download product information

PE7369-10

Overview

The Pasternack PE7369-10 is a fixed RF coaxial attenuator designed for high-frequency applications. It features N Female connectors on both sides and provides a precise attenuation value of 10 dB. The component is rated to operate at frequencies up to 7.5 GHz and can handle a maximum power level of 25 Watts at the stated attenuation value. This device serves as a reliable solution for signal reduction in microwave systems requiring stable performance within its specified frequency and power limits.

Feature Summary

Provides fixed 10 dB signal attenuation
Rated for operation up to 7.5 GHz
Supports continuous power handling of 25 Watts

Applications

Microwave system signal conditioning
RF test and measurement setups
Signal level adjustment in communication links

Procurement Notes

Verify the connector gender configuration matches the system requirements, specifically ensuring both ports are N Female. Confirm that the operating frequency does not exceed the 7.5 GHz limit and that the power levels remain within the 25 Watt rating to ensure safe and effective operation of the attenuator.

Selection Notes

Select this model when a fixed 10 dB reduction is required in an N-type interface environment. Ensure the application frequency stays below 7.5 GHz and power demands do not surpass 25 Watts. Consider thermal management if operating near the maximum power rating for extended periods.

Part Context

This component belongs to the Pasternack line of fixed attenuators, which are essential passive devices used to reduce signal amplitude without distortion. Fixed attenuators like the PE7369-10 offer consistent performance across their rated bandwidth, making them suitable for permanent installation in RF chains where signal strength needs to be precisely controlled.

Replacement Considerations

Substitute with other Pasternack N Female fixed attenuators offering similar 10 dB attenuation and 7.5 GHz frequency ratings. Ensure any replacement maintains the 25 Watt power handling capability and compatible physical connector dimensions for direct integration.
