PE7369-30

Overview

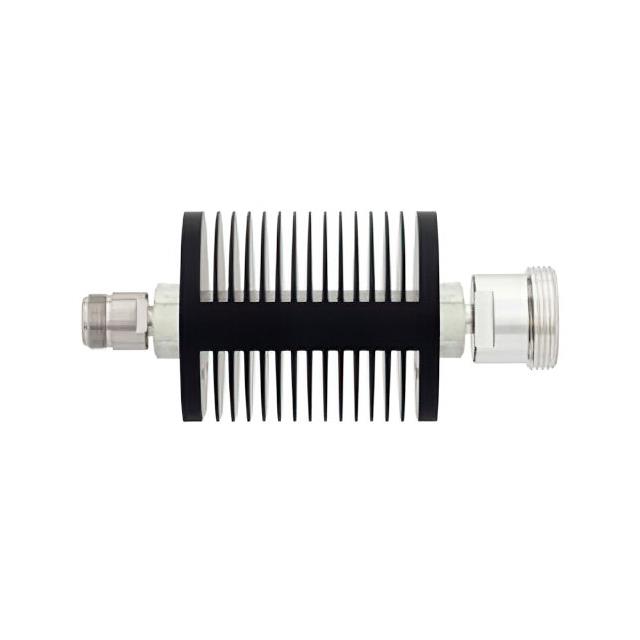

The PE7369-30 is a fixed 30 dB attenuator manufactured by Pasternack. It features an N Female to 7/16 DIN Female interface configuration. The device operates within a frequency range of DC to 7.5 GHz and is rated for a power handling capacity of 25 Watts. This coaxial component utilizes a 50 Ohm impedance system and employs an in-line, resistive PI attenuator pad design for signal attenuation.

Feature Summary

• In-line resistive PI attenuator pad design
• Coaxial 50 Ohm impedance system
• Rated for 25 Watts power handling

Applications

• RF signal level reduction
• Test and measurement equipment
• Communication systems

Procurement Notes

Verify the specific datasheet version for the PE7369-30 to confirm mechanical dimensions and material specifications. Ensure compatibility with existing N and 7/16 DIN connectors in the target assembly. Cross-reference performance curves against operational frequency requirements up to 7.5 GHz.

Selection Notes

Select this component when a fixed 30 dB attenuation value is required between N and 7/16 DIN interfaces. Consider the 25 Watt power rating and 7.5 GHz frequency limit during system design. Verify that the 50 Ohm impedance matches the surrounding circuitry to minimize reflections.

Part Context

This part belongs to Pasternack's series of fixed attenuators. It serves as a passive RF component designed to reduce signal amplitude without introducing significant distortion. The specific model combines two different connector standards, facilitating connections between equipment utilizing N-type and 7/16 DIN interfaces.

Replacement Considerations

PE7369-40
