PE7369-40

Overview

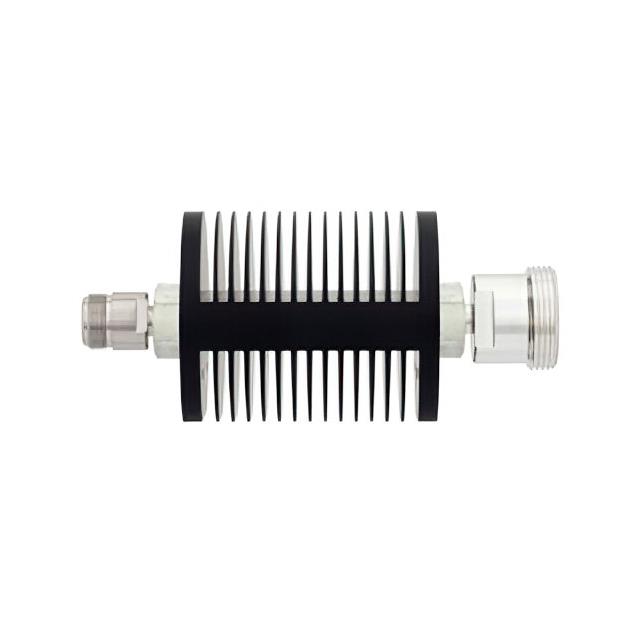

The PE7369-40 is a fixed 40 dB attenuator manufactured by Pasternack. It features an N Female to 7/16 DIN Female interface configuration. The device operates within a frequency range of 0 Hz to 7.5 GHz and supports a power rating of 25 Watts. The impedance is 50 Ohms. The construction utilizes black anodized aluminum for the heatsink housing.

Feature Summary

• In-line resistive PI attenuator pad design
• Black anodized aluminum heatsink housing

Applications

• RF signal attenuation in coaxial systems
• Test and measurement equipment
• Telecommunications infrastructure

Procurement Notes

Verify the specific datasheet version for the PE7369-40 to confirm mechanical dimensions and thermal characteristics. Ensure compatibility with system voltage and current ratings before integration. Cross-reference manufacturer documentation for any updates regarding material composition or regulatory compliance status.

Selection Notes

Select this component when a fixed 40 dB attenuation value is required between N-type and 7/16 DIN connectors. Consider the 25 Watt power handling capability and the 7.5 GHz upper frequency limit. Verify that the 50 Ohm impedance matches the surrounding circuit requirements.

Part Context

This part belongs to Pasternack's RF attenuator product line. It serves as a passive component for reducing signal strength in radio frequency applications. The specific model bridges different connector standards while maintaining precise attenuation performance across a wide frequency band.
