PE7369-50

Overview

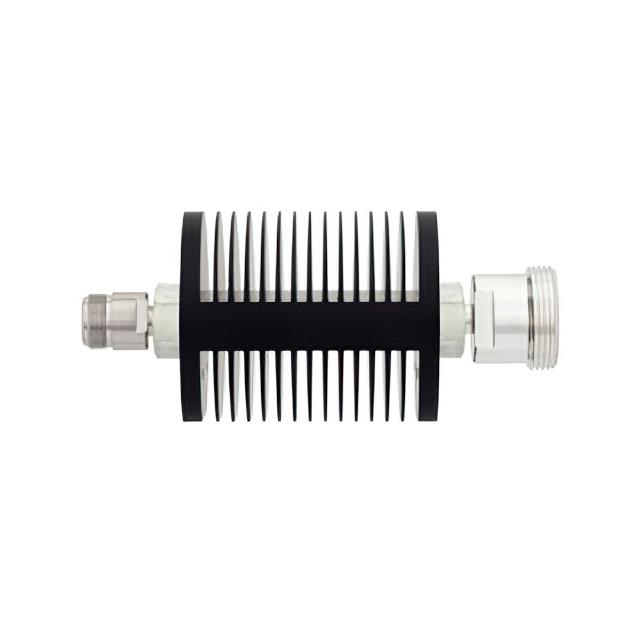

The PE7369-50 is a fixed RF attenuator manufactured by Pasternack. It provides an attenuation value of 50 dB within a frequency range of 0 Hz to 6 GHz. The component features a 50 Ohm impedance and supports a power handling capacity of 25 Watts. The device utilizes a resistive PI attenuator pad design for signal reduction.

Feature Summary

• Fixed 50 dB attenuation performance
• Resistive PI attenuator pad design
• Coaxial 50 Ohm impedance configuration

Applications

• RF signal level reduction in communication systems
• Test and measurement equipment calibration
• Protecting sensitive receiver components from high power signals

Procurement Notes

Verify the specific connector interface compatibility with your system requirements before ordering. Confirm that the 25W power rating and 6GHz frequency limit align with your operational parameters. Ensure the module form factor fits your enclosure constraints. Cross-reference the datasheet for environmental specifications if operating in extreme conditions.

Selection Notes

Select this model when a precise 50 dB reduction is required at frequencies up to 6 GHz. Consider the 25W power handling capability for high-power applications. Compare against other values in the PE7369 series, such as PE7369-40 or PE7369-30, if lower attenuation is sufficient for your specific circuit needs.

Part Context

This component belongs to the PE7369 series of fixed attenuators from Pasternack. The series includes various attenuation values like 3dB, 6dB, 30dB, and 40dB, all sharing similar N Female to 7/16 DIN Female connector interfaces and resistive PI designs. It is categorized under RF Attenuators.

Replacement Considerations

Direct substitutes within the same series include PE7369-40 (40 dB) and PE7369-30 (30 dB). Other models in the PE7369 line offer different attenuation levels but maintain the same connector types and general design characteristics.
