PE7370-6

Overview

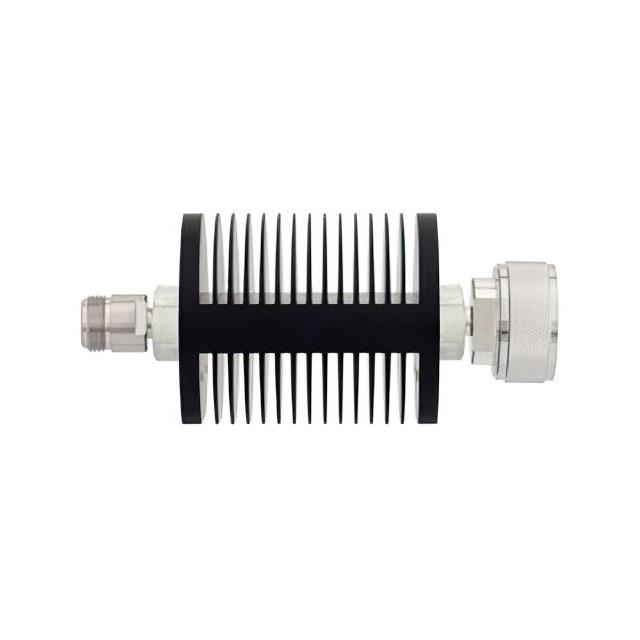

The Pasternack PE7370-6 is a fixed attenuator designed for RF applications. It features an N Female to 7/16 DIN Female interface configuration. The device operates with a characteristic impedance of 50 Ohms and provides a nominal attenuation value of 6 dB. It is rated to handle up to 25 Watts of power across a frequency range extending up to 7.5 GHz. The housing is constructed from black anodized aluminum, serving as a heatsink body to ensure thermal stability during operation.

Feature Summary

• Fixed attenuation performance with stable electrical characteristics
• Robust aluminum heatsink body for effective thermal management
• Versatile connector interface combining N Female and 7/16 DIN Female ports

Applications

• RF signal level reduction in test and measurement setups
• Impedance matching and power control in microwave systems
• Signal conditioning within communication infrastructure equipment

Procurement Notes

Verify the specific connector gender and interface type against system requirements before procurement. Confirm that the 25 Watt power rating and 7.5 GHz frequency limit align with operational parameters. Ensure the black anodized aluminum construction meets environmental durability standards. Check for RoHS compliance if required by project specifications. Validate availability through authorized distributors to guarantee component authenticity.

Selection Notes

Select this model when a precise 6 dB attenuation is required between N Female and 7/16 DIN Female connections. Consider the 50 Ohm impedance match for compatibility with standard RF systems. Evaluate the 25 Watt power handling capacity against peak signal levels. Assess the physical size and mounting needs associated with the heatsink design. Compare against other attenuators if different connector types or attenuation values are needed.

Part Context

This component belongs to the PE7370 series of fixed attenuators manufactured by Pasternack. The series offers various attenuation values while maintaining consistent interface options and power ratings. These devices are part of a broader portfolio of passive RF components designed for reliable signal processing in high-frequency environments.

Replacement Considerations

Direct substitutes include other PE7370 series models with identical interfaces but different attenuation values, such as PE7370-3 or PE7370-40. Cross-reference connector types and power ratings when considering alternative brands. Verify that any replacement maintains the 50 Ohm impedance and 7.5 GHz frequency range.
