PE7371-50

Overview

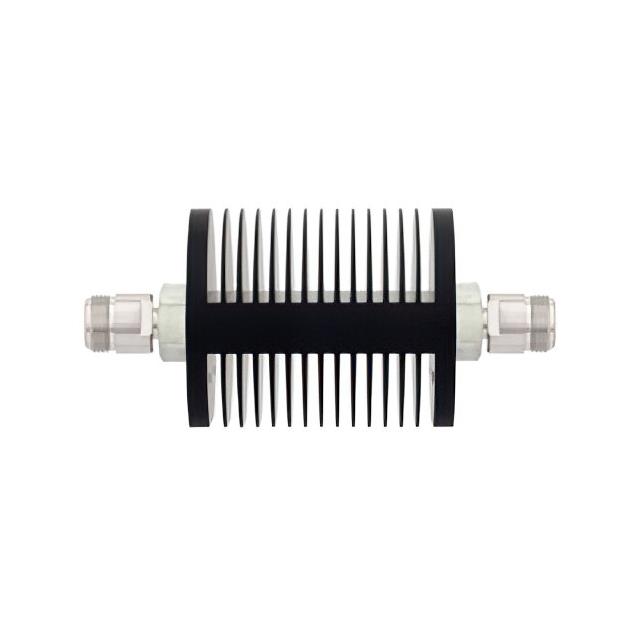

The Pasternack PE7371-50 is a fixed 50 dB attenuator featuring N-type female connectors on both ports. Designed for in-line resistive PI attenuator pad applications, this coaxial component operates within a 50 Ohm impedance system. It supports frequency ranges up to 8 GHz and handles power ratings of 25 Watts at the stated attenuation value. The unit utilizes black anodized aluminum for its heat dissipation requirements.

Feature Summary

• In-line resistive PI attenuator pad design
• Black anodized aluminum construction for thermal management
• Coaxial 50 Ohm impedance compatibility

Applications

• RF signal level reduction
• Impedance matching in microwave circuits
• Test and measurement setups

Procurement Notes

Verify connector gender matches system requirements, as this model specifies N-type female to N-type female interfaces. Confirm that the 25 Watt power rating aligns with operational limits. Ensure the 8 GHz frequency range covers the intended application spectrum. Check datasheet specifications for VSWR and insertion loss values critical for precision RF environments.

Selection Notes

Select this model when a fixed 50 dB attenuation is required between N-type female connections. Consider the 25 Watt power handling capability for high-power RF paths. Verify that the 8 GHz upper frequency limit meets system bandwidth needs. Evaluate the black anodized aluminum housing for environmental durability and heat dissipation in enclosed assemblies.

Part Context

This component belongs to Pasternack's series of fixed attenuators designed for general-purpose RF applications. The PE7371 series offers various attenuation levels with consistent N-type female connectivity. These units are engineered for stable performance in laboratory and production environments requiring precise signal attenuation without variable adjustment capabilities.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
