PE7375-20

Overview

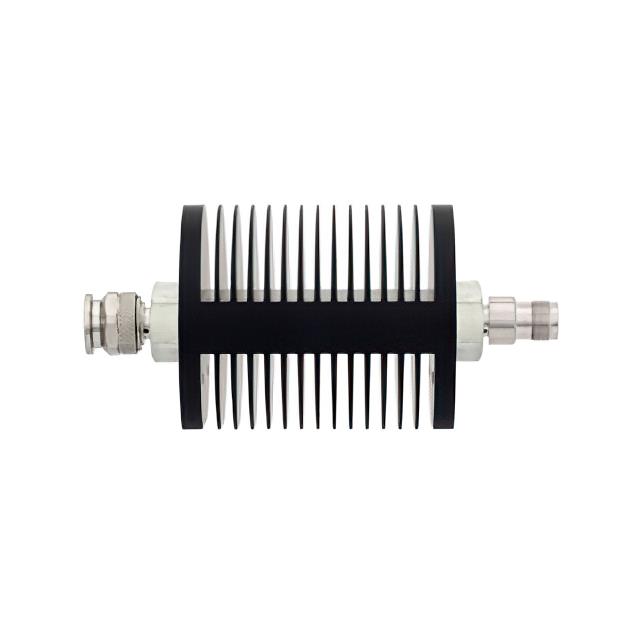

The Pasternack PE7375-20 is a fixed RF attenuator designed for high-frequency applications. It provides a precise attenuation value of 20 dB across a frequency range extending from 0 Hz to 18 GHz. The device features TNC male and TNC female connectors, ensuring compatibility with standard coaxial systems. It is rated to handle up to 25 Watts of power at the stated attenuation level. The unit is constructed with a black anodized finish on its housing.

Feature Summary

• Provides stable 20 dB signal reduction across microwave frequencies
• Supports continuous power handling up to 25 Watts
• Utilizes robust TNC connector interface for secure attachment

Applications

• Microwave test and measurement setups
• Signal level adjustment in RF transmission lines
• Attenuation requirements for high-frequency circuit testing

Procurement Notes

Verify the specific connector gender and interface type against system requirements before integration. Confirm that the operating frequency does not exceed the 18 GHz upper limit. Ensure the expected signal power remains within the 25 Watt rating to prevent component damage. Check for any environmental constraints related to the anodized finish.

Selection Notes

Select this model when a fixed 20 dB reduction is required in TNC-based systems. Consider the 18 GHz bandwidth for wideband applications. Evaluate the 25 Watt power capacity against peak signal levels. Compare with other connector types if TNC interfaces are not available in the target assembly.

Part Context

This component belongs to the category of fixed RF attenuators manufactured by Pasternack. It serves as a passive device for controlling signal amplitude without introducing significant distortion. The design focuses on maintaining impedance consistency while providing reliable attenuation performance in demanding RF environments.

Replacement Considerations

No public confirmed substitute part numbers are available.
