PE7375-30

Overview

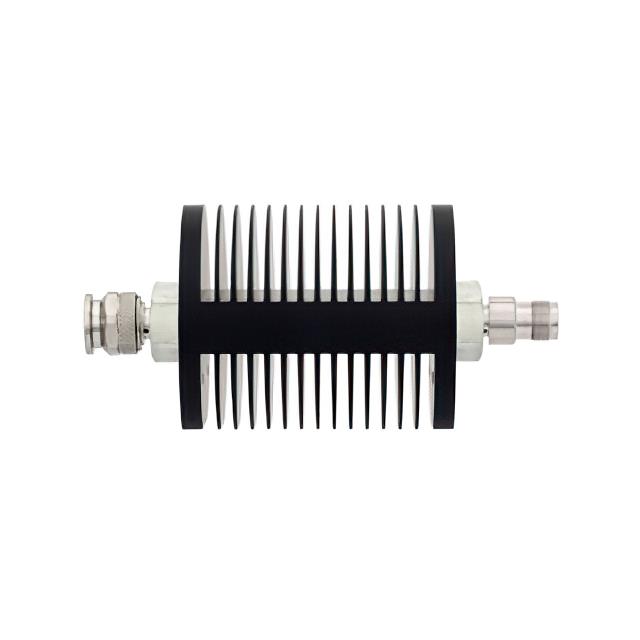

The PE7375-30 is a fixed 30 dB attenuator manufactured by Pasternack. It features TNC male to TNC female connectors and operates within a frequency range of 0 Hz to 18 GHz. The device utilizes a coaxial 50 Ohm resistive PI attenuator pad design for inline signal reduction. It is rated for a maximum power handling capacity of 25 Watts. The housing is constructed from brass with a black anodized finish, providing durability for various RF applications.

Feature Summary

• Fixed 30 dB attenuation value
• TNC male to TNC female interface
• 50 Ohm impedance system
• Black anodized brass body

Applications

• RF signal level control
• Precision measurement systems
• Production testing environments

Procurement Notes

Verify the specific connector gender configuration (male-to-female) and physical dimensions against your assembly requirements. Confirm that the 25W power rating aligns with your operational thermal conditions. Ensure the black anodized finish meets environmental corrosion resistance standards for your intended deployment location.

Selection Notes

Select this component when a precise 30 dB reduction is required in a 50 Ohm system up to 18 GHz. Consider the TNC interface compatibility with existing test equipment. Evaluate the 25W power handling capability against peak signal levels to prevent damage or performance degradation during high-power operations.

Part Context

This part belongs to Pasternack's line of fixed RF attenuators designed for stable signal attenuation. It serves as a passive component for managing signal strength in microwave and radio frequency circuits without introducing significant phase shift or distortion.

Replacement Considerations

Compatible substitutes include PE7607-30 (N-type, 10W) and PE7002-30 (N-type, 3GHz). Verify connector type changes if N-type interfaces are acceptable alternatives.
