PE7379-10

Overview

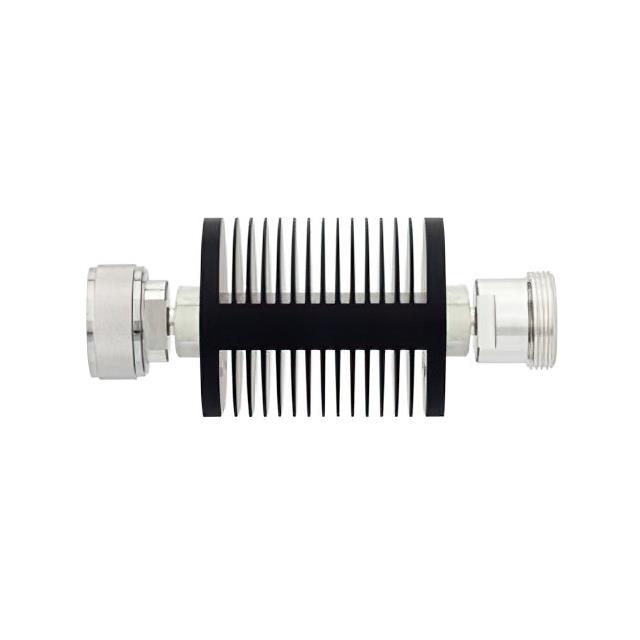

The PE7379-10 is a fixed attenuator manufactured by Pasternack, designed for RF applications operating from DC to 7.5 GHz. It provides a precise attenuation value of 10 dB and supports a maximum power handling capacity of 25 W. The unit weighs 362.87 g.

Feature Summary

• Provides fixed 10 dB signal attenuation
• Operates across DC to 7.5 GHz frequency range
• Handles up to 25 W of RF power

Applications

• RF signal level reduction in test and measurement setups
• Impedance matching in high-frequency circuits
• Protecting sensitive equipment from high power signals

Procurement Notes

Verify the specific connector type and interface configuration required for your application, as datasheet details regarding physical dimensions and mating connectors are not fully provided in the source material. Confirm that the 25 W power rating aligns with your system's peak power requirements to ensure reliable operation within the specified frequency range.

Selection Notes

Select this component when a fixed 10 dB reduction is needed within the DC to 7.5 GHz band. Ensure the 25 W power handling capability meets your system's demands. Consider the weight and form factor for integration into existing RF infrastructure.

Part Context

This part belongs to Pasternack's fixed attenuator series, offering stable performance in RF systems. It serves as a passive component for controlling signal strength without introducing significant distortion or noise, suitable for both laboratory and industrial environments.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
