PE7379-6

Overview

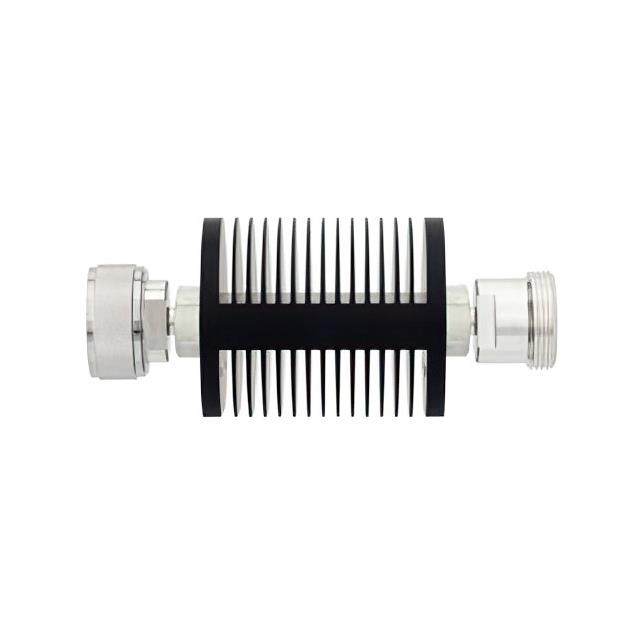

The Pasternack PE7379-6 is a fixed attenuator featuring 7/16 DIN male to 7/16 DIN female connectors. It provides a nominal attenuation of 6 dB with a maximum power rating of 25 Watts and operates up to 7.5 GHz.

Feature Summary

• Fixed 6 dB attenuation value
• 7/16 DIN connector interface
• Rated for 25 Watts power handling

Applications

• RF signal level reduction
• Microwave test and measurement setups
• Communication system protection

Procurement Notes

Verify the specific connector gender configuration matches the application requirements. Confirm that the operating frequency range does not exceed the 7.5 GHz limit. Ensure the power levels remain within the 25 Watt rating to maintain component integrity and performance specifications.

Selection Notes

Select this model when a precise 6 dB loss is required in high-power RF environments. The 7/16 DIN interface supports robust connections suitable for demanding applications. Consider the frequency response characteristics to ensure compatibility with the system bandwidth needs.

Part Context

This component belongs to the Pasternack fixed attenuator series, designed for reliable signal management in microwave circuits. It utilizes standard 7/16 DIN connectors to facilitate integration into existing infrastructure requiring high-power handling capabilities.

Replacement Considerations

PE7379-50
