PE7380-30

Overview

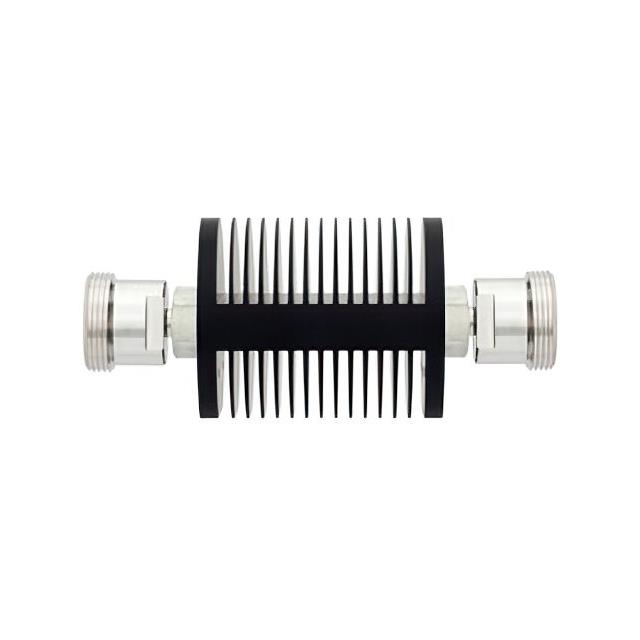

The PE7380-30 is a fixed 30 dB attenuator from Pasternack. This 30dB attenuator is an in-line, resistive PI attenuator pad design. Its coaxial 50 Ohm attenuator operates within a frequency range of 0 Hz to 7.5 GHz. The component features a HEX in-line module form factor and is rated for 25W power handling.

Feature Summary

• In-line resistive PI attenuator pad design
• Coaxial 50 Ohm impedance matching
• HEX in-line module form factor

Applications

• RF signal attenuation
• Microwave circuit testing
• Signal level reduction in transmission lines

Procurement Notes

Verify the exact connector interface type (e.g., 7/16 DIN) against the official datasheet, as distributor listings may vary. Confirm the specific power rating and frequency limits required for your application before ordering. Ensure compatibility with existing system impedance and physical mounting constraints.

Selection Notes

Select this model for applications requiring precise 30 dB attenuation across a wide DC to 7.5 GHz bandwidth. The 50 Ohm impedance ensures compatibility with standard RF systems. Consider the HEX module size for space-constrained environments where in-line integration is necessary.

Part Context

This component belongs to Pasternack's line of fixed RF attenuators. It utilizes a resistive PI network topology to achieve stable attenuation values. The product is designed for reliable performance in microwave and RF test setups.

Replacement Considerations

PE7389-30: N male to N female variant with 50W rating up to 3 GHz.
