PE7386-20

$199.78

Description：20 dB Fixed Attenuator, N Male t
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:24dcfc78bdbf Category: Attenuators Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：20 dB Fixed Attenuator, N Male t
Series：-
Mfr：Pasternack
Package：Retail Package
Attenuation Value：20dB
Frequency Range：0 Hz ~ 3 GHz
Power (Watts)：10W
Impedance：50 Ohms
Grade：-
Qualification：-
Package / Case：N-Type In-Line Module

Download product information

PE7386-20

Overview

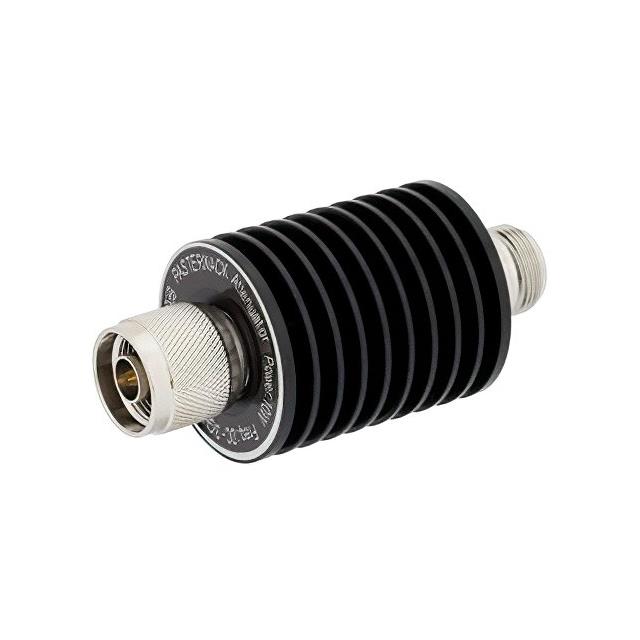

The Pasternack PE7386-20 is a fixed attenuator rated for 20 dB attenuation with an operating frequency range of 0 Hz to 3 GHz. It features N-type connectors, specifically male-to-female configuration, and operates at a characteristic impedance of 50 Ohms. The unit supports up to 10 Watts of power handling capacity. The housing is constructed from aluminum with a black anodized finish and includes a heatsink design.

Feature Summary

Fixed 20 dB attenuation value
N-type male to female connector interface
Aluminum heatsink body with black anodized finish

Applications

RF signal level reduction in communication systems
Test and measurement setups requiring precise signal attenuation
Wireless infrastructure component integration

Procurement Notes

Verify the specific datasheet version for the PE7386-20 to confirm mechanical dimensions and thermal characteristics. Ensure compatibility with system impedance requirements of 50 Ohms. Check connector gender alignment for proper installation. Confirm power rating suitability for the intended application environment.

Selection Notes

Select this model when a fixed 20 dB attenuation is required within the 3 GHz bandwidth. Consider the N-type interface for standard RF connections. Evaluate the 10W power handling against peak signal levels. The heatsink design aids in thermal management for continuous operation.

Part Context

This component belongs to the Pasternack PE7386 series of fixed attenuators. The series offers various attenuation values including 6 dB, 30 dB, and 40 dB options. All units in this line share similar construction materials and connector types, differing primarily in their specified attenuation levels.

Replacement Considerations

Compatible substitutes include the PE7386-6, PE7386-30, and PE7386-40 from the same manufacturer. These parts share identical physical form factors and connector interfaces but provide different attenuation values. Verify that the alternative attenuation level meets the circuit requirements.
