Product Detailed Parameters
- Description：3 dB Fixed Attenuator, N Male to
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Attenuation Value：3dB
- Frequency Range：0 Hz ~ 3 GHz
- Power (Watts)：10W
- Impedance：50 Ohms
- Grade：-
- Qualification：-
- Package / Case：N-Type In-Line Module
Download product information
Overview

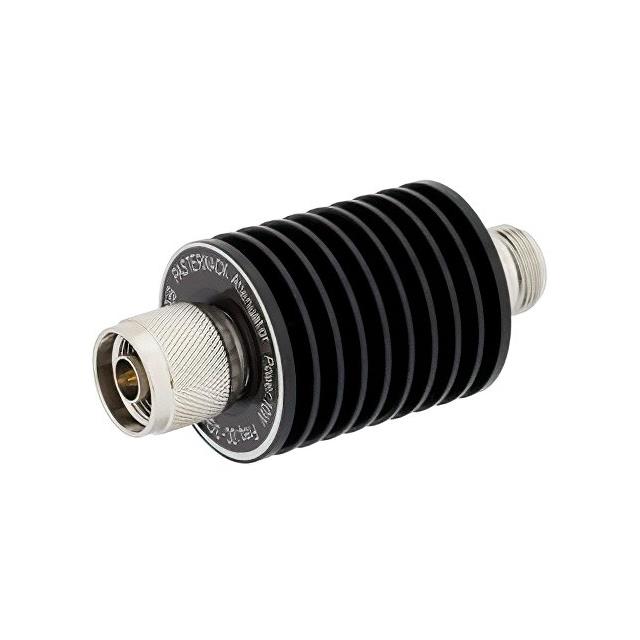

The Pasternack PE7386-3 is a fixed attenuator module designed for RF applications. It provides an attenuation value of 3 dB across a frequency range from 0 Hz to 3 GHz. The device features N-type connectors, with male gender on one side and female on the other, facilitating in-line integration. It is rated for a power handling capacity of 10 Watts. The unit utilizes an aluminum heatsink body with black anodized finish for thermal management.
