PE7387-30

$844.22

Description：30 dB Fixed Attenuator, N Male t
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:d7396fb221a3 Category: Attenuators Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：30 dB Fixed Attenuator, N Male t
Series：-
Mfr：Pasternack
Package：Retail Package
Attenuation Value：6dB
Frequency Range：0 Hz ~ 3 GHz
Power (Watts)：200W
Impedance：50 Ohms
Grade：-
Qualification：-
Package / Case：Module

Download product information

PE7387-30

Overview

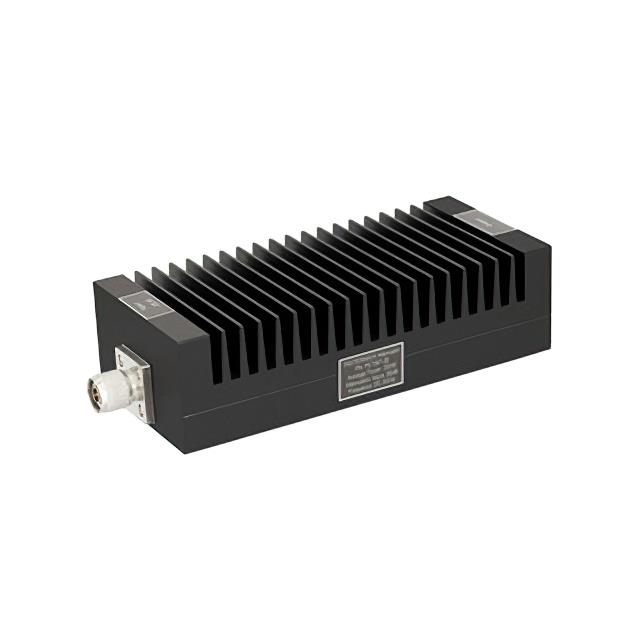

The Pasternack PE7387-30 is a fixed RF attenuator designed for unidirectional signal reduction. It features N male to N female connectors and operates within a frequency range of 0 Hz to 3 GHz. The unit provides a nominal attenuation of 30 dB with a maximum power rating of 200 watts. Constructed with an aluminum body finished in black anodized coating, it maintains a 50 Ohm impedance and a VSWR of 1.5:1. The device supports operating temperatures from -55°C to +125°C.

Feature Summary

Unidirectional signal attenuation capability
High power handling rated at 200 watts
Durable black anodized aluminum housing

Applications

RF test and measurement setups requiring precise signal reduction
Protecting sensitive receiver inputs from high-power signals
Signal conditioning in wireless communication systems

Procurement Notes

Verify the specific datasheet version to confirm the exact frequency range, as sources indicate variations between 3 GHz and 10 GHz specifications. Ensure the connector gender matches the system requirements, as some listings describe N male to N female configurations while others may imply different terminations. Confirm the power rating aligns with the application's peak power demands before integration.

Selection Notes

Select this component when a high-power, fixed 30 dB attenuation is required for N-type interfaces. It is suitable for applications demanding robust thermal performance and wide temperature operation. Consider the unidirectional nature of the device to ensure correct signal flow directionality within the circuit design.

Part Context

This part belongs to Pasternack's line of fixed RF attenuators, which are essential components for managing signal levels in radio frequency circuits. These devices are engineered to provide stable attenuation values across specified bandwidths, ensuring consistent performance in demanding electronic environments.
