PE7388-6

Overview

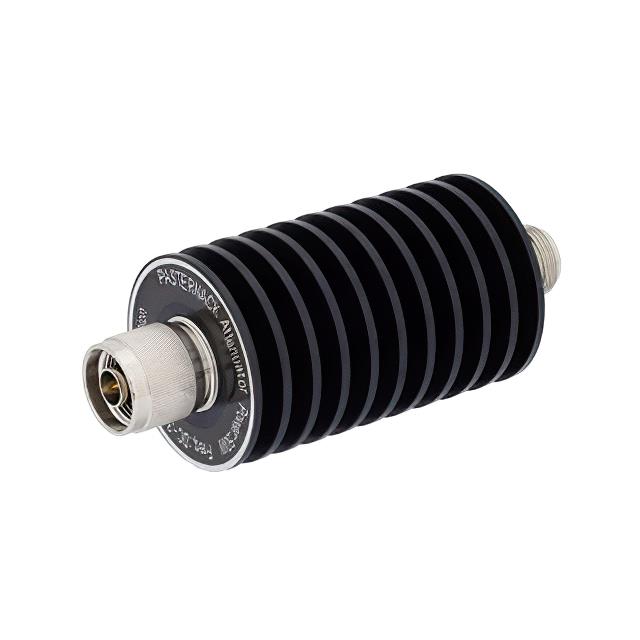

The PE7388-6 is a fixed attenuator manufactured by Pasternack. It features Type N male to female connectors and operates within a frequency range of 0 Hz to 12.4 GHz. The device provides a nominal attenuation of 6 dB with a maximum VSWR of 1.50:1. It has a power rating of 50 watts and an impedance of 50 ohms. The unit utilizes a black anodized aluminum heatsink body and functions between -55°C and +125°C.

Feature Summary

• Unidirectional signal flow capability
• Black anodized aluminum heatsink body for thermal management
• Type N male to female connector interface

Applications

• RF test and measurement setups
• Signal level reduction in communication systems
• Component protection in high-power circuits

Procurement Notes

Verify the specific datasheet version for the PE7388-6 to confirm exact electrical tolerances and mechanical dimensions. Ensure compatibility with system requirements regarding unidirectional operation and connector gender. Cross-reference official manufacturer documentation for precise operating temperature limits and power handling capabilities before integration.

Selection Notes

Select this component when a 6 dB attenuation value is required at frequencies up to 12.4 GHz. The Type N interface suits applications needing robust connections. Consider the unidirectional nature if signal directionality is critical. The 50-watt power rating supports moderate to high-power RF environments.

Part Context

This model belongs to Pasternack's line of fixed attenuators designed for RF applications. It serves as a passive component for reducing signal amplitude without distortion. The series typically includes various attenuation values and connector types to meet diverse system specifications.

Replacement Considerations

PE7388-20, PE7388-30, PE7389-6.
