PE7390-1

Overview

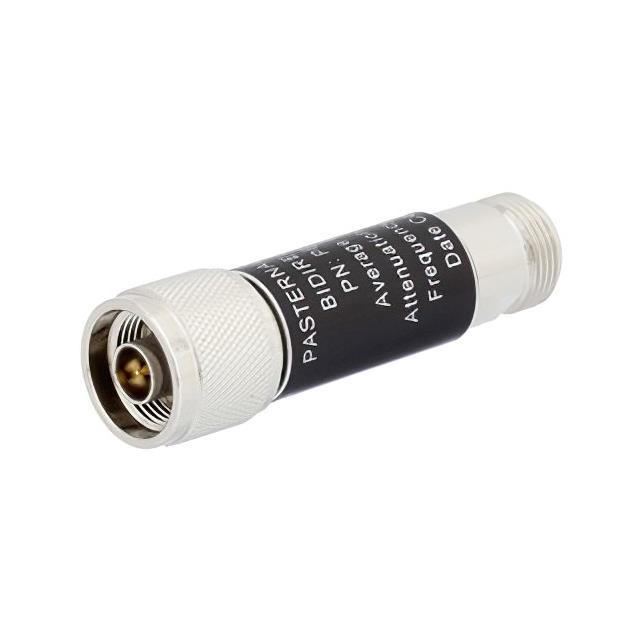

The Pasternack PE7390-1 is a fixed attenuator featuring Type N male-to-female connectors. It provides an attenuation value of 1 dB and operates up to a frequency of 3 GHz. The device is rated for a power handling capacity of 5 Watts. Constructed with an aluminum body, it ensures durability in RF applications.

Feature Summary

• Provides precise 1 dB signal attenuation
• Operates effectively up to 3 GHz frequency range
• Features Type N male to female connector interface
• Rated for 5 Watts power handling capacity

Applications

• RF signal level adjustment
• Test and measurement setups
• Communication system integration

Procurement Notes

Verify the specific datasheet version for the PE7390-1 to confirm current manufacturing status and compliance details. Ensure that the required power rating of 5 Watts aligns with your system's operational limits. Check connector gender compatibility carefully before installation to prevent interface mismatches in your RF chain.

Selection Notes

Select this component when a low attenuation value of 1 dB is required within the 3 GHz bandwidth. The Type N interface suits standard industrial RF environments. Consider the 5 Watt power rating to ensure safe operation under expected signal loads without thermal degradation or performance loss.

Part Context

This model belongs to Pasternack's line of low-frequency RF attenuators. It utilizes an aluminum heatsink design to manage thermal dissipation. The product series includes various attenuation values, all sharing similar connector types and frequency ratings for consistent system integration.

Replacement Considerations

Compatible substitutes include other 1 dB fixed attenuators with Type N connectors from Pasternack, such as the PE7390-10, provided the attenuation value matches the specific circuit requirement. Verify that any replacement maintains the 3 GHz frequency limit and 5 Watt power rating.
