PE7390-20

$90.16

Description：20 dB Fixed Attenuator, N Male t
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:b3f787f989d9 Category: Attenuators Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：20 dB Fixed Attenuator, N Male t
Series：-
Mfr：Pasternack
Package：Retail Package
Attenuation Value：1dB
Frequency Range：0 Hz ~ 3 GHz
Power (Watts)：5W
Impedance：50 Ohms
Grade：-
Qualification：-
Package / Case：N-Type In-Line Module

Download product information

PE7390-20

Overview

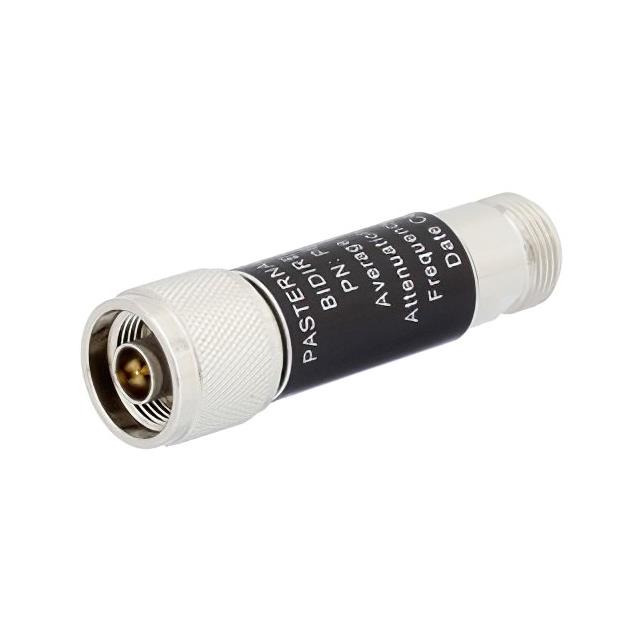

The PE7390-20 is a fixed attenuator manufactured by Pasternack Enterprises, Inc. It provides a precise attenuation of 20 dB with a frequency range extending from DC to 3 GHz. The device features N-type connectors, specifically an N male connector on one side and an N female connector on the other. Constructed with an aluminum body, it is rated for a continuous power handling capacity of 5 watts within its specified operational bandwidth.

Feature Summary

Fixed 20 dB attenuation value
N male to N female interface configuration
Aluminum housing construction
Operational frequency up to 3 GHz

Applications

RF signal level reduction in test setups
Impedance matching in coaxial circuits
Signal conditioning in communication systems

Procurement Notes

Verify that the specific part number matches the required 20 dB attenuation and N-type connector gender combination. Confirm that the 5-watt power rating and 3 GHz frequency limit align with the system requirements. Ensure the aluminum body material meets environmental specifications for the intended installation environment.

Selection Notes

Select this component when a fixed 20 dB loss is required between DC and 3 GHz. The N-type interface dictates compatibility with existing N-female or N-male ports. The 5-watt power rating must be sufficient for the maximum expected signal power in the application path.

Part Context

This component belongs to the Pasternack fixed attenuator series designed for RF applications. It serves as a passive device to reduce signal amplitude without introducing significant distortion. The N-type connector standard ensures broad compatibility with common RF infrastructure components and test equipment interfaces.

Replacement Considerations

Substitute parts must maintain the 20 dB attenuation value and operate within the DC to 3 GHz range. Compatible replacements require matching N male to N female connector genders. Verify that the alternative component supports at least 5 watts of continuous power handling.
