PE7390-6

Overview

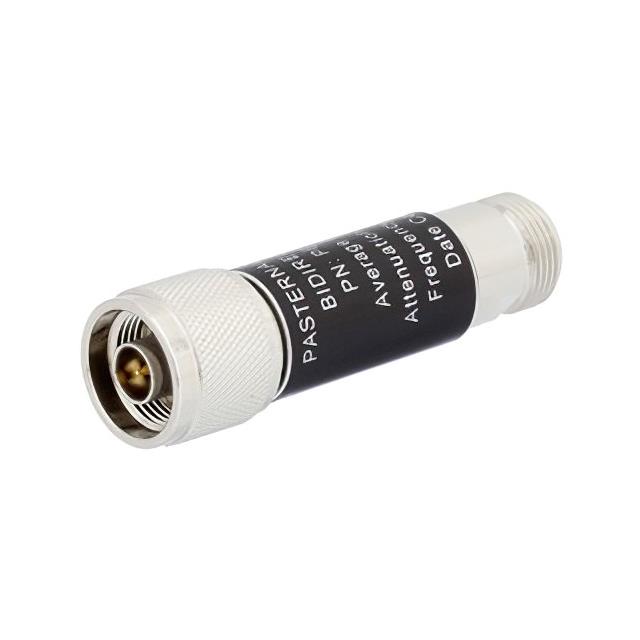

The Pasternack PE7390-6 is a fixed attenuator rated for operation from 0 Hz to 3 GHz. It features N-Type connectors with male gender on one side and female gender on the other, designed for in-line module applications. The unit utilizes an aluminum body construction and supports a power handling capacity of 5 Watts. This component provides a precise attenuation value of 6 dB within its specified frequency range.

Feature Summary

• Fixed attenuation performance at 6 dB
• N-Type connector interface configuration
• Aluminum housing construction

Applications

• RF signal level reduction
• Impedance matching networks
• Test and measurement setups

Procurement Notes

Verify the specific connector gender orientation and physical dimensions against system requirements before integration. Confirm that the 5 Watt power rating aligns with operational signal levels to prevent thermal damage. Ensure the 3 GHz upper frequency limit meets application bandwidth needs. Check for any environmental sealing requirements if used in outdoor or harsh conditions.

Selection Notes

Select this model when a fixed 6 dB loss is required within the DC to 3 GHz spectrum. Consider the N-Type interface compatibility with existing cabling infrastructure. Evaluate the aluminum body for thermal dissipation capabilities relative to continuous power usage. Compare against variable attenuators if adjustable loss is needed instead of a fixed value.

Part Context

This component belongs to Pasternack's line of fixed RF attenuators. It is part of a series offering various attenuation values such as 1, 3, 10, and 15 dB, all sharing similar N-Type connector interfaces and 3 GHz frequency ratings. These devices are standard passive components used for signal conditioning in radio frequency systems.

Replacement Considerations
